Description:
Type: PMDD
Voltage: 12 Volts, kW: 0.6 kW

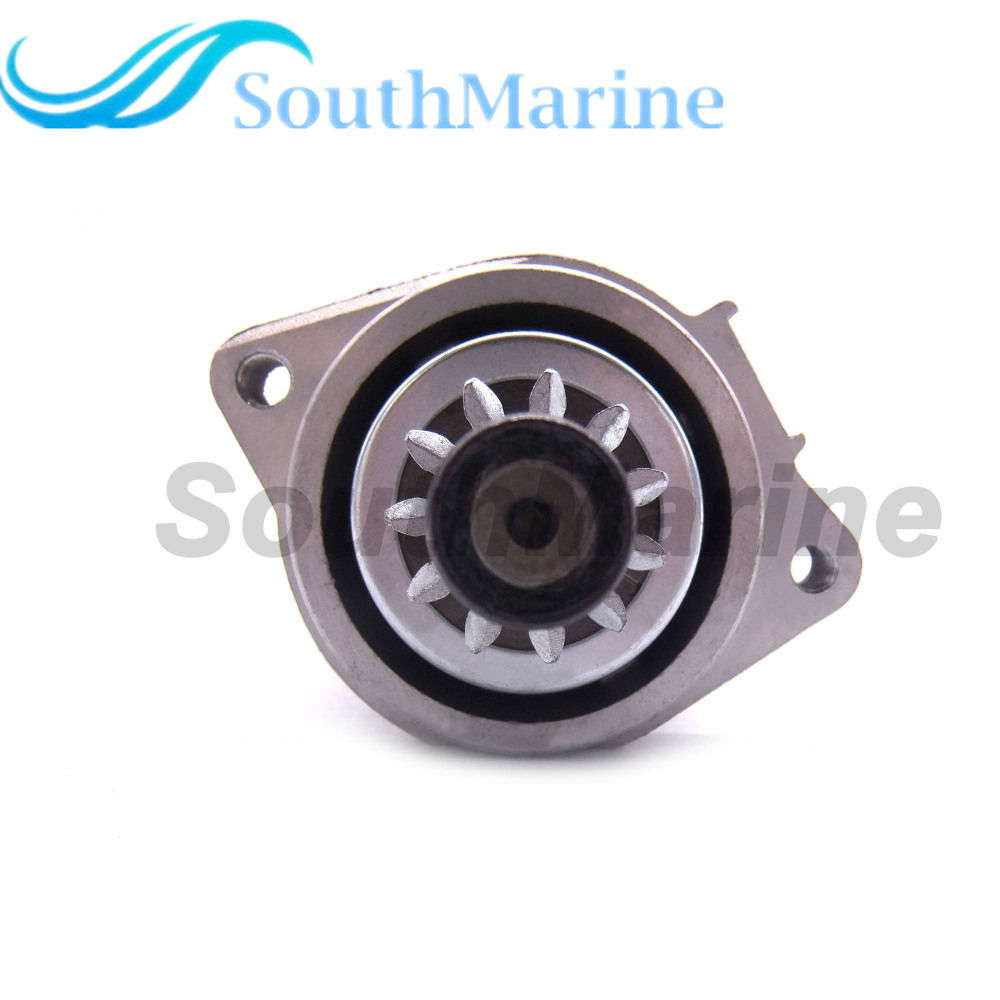

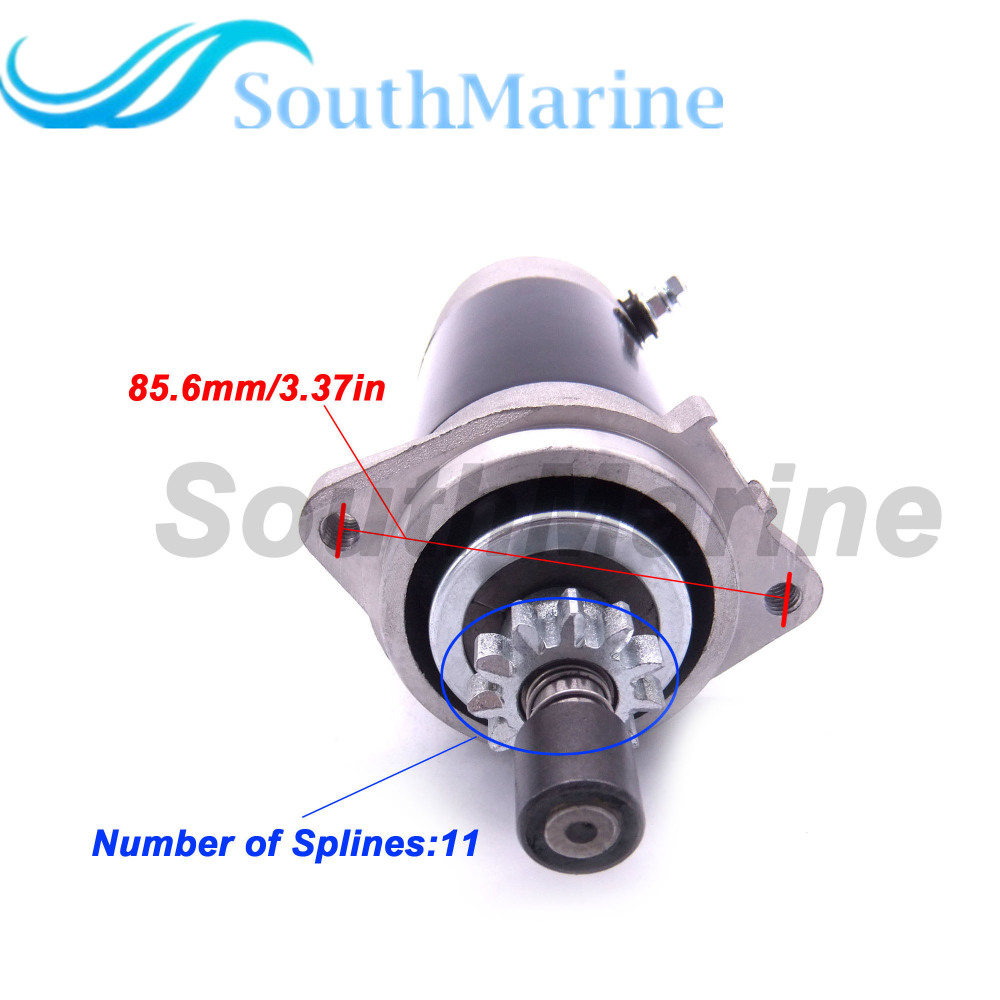

Teeth/Splines Number: 11
Pinion/Splines OD: 33.1mm / 1.303in
Mounting Hole 1: M8-1.25 ID Threaded
Mounting Hole 2: M8-1.25 ID Threaded
Approximate Gross Weight: 4.21bs / 1.91kg
If you are unsure, please provide your engine serial number before purchase.
Replaces Mercury Marine Starter Motor Parts Number#: 50-814980M 50-96359M 50-97693M
Replaces API MARINE: MOT5000 MOT5000N
Replaces ARCO MARINE: 3420
Replaces ARROWHEAD: SHI0085
Replaces ARROWHEAD (OEM): S108-80B
Replaces EMP PARTS: 4-6410
Replaces HITACHI: S108-80, S108-80A, S108-80B
Replaces J & N: 410-44088
Replaces LESTER: 18310
Replaces SIERRA MARINE: 18-6410
Replaces WAI: 18310N, 2-2309-HI
And this starter motor also support the china 30HP Outboard Engine, fits Parsun/Hidea/Seatec/Tiger Etc.
This 97693M STARTER ASSY fits Mercury the following models and components:
30HP 689-250101 AND UP - 30 HP Electric Start Motor
20HP 6A9-000101 THRU 010111 - MARINER 20 Electric Start Motor
20HP 6A9-010112 & Up - Cat.# 90-12537 - THRU PROP, EXHAUST Electric Start Motor
30HP 689-530101 AND UP - 30 HP Electric Start Motor
30HP 689-321377 THRU 689-250100 E - Belgium - Cat.# 90-12538 Electric Start Motor
20HP 6A9-300101 THRU 306542 - MARINER 20 Electric Start Motor
30HP 689-550101 AND UP - 30 HP Electric Start Motor
30HP 689-230101 AND UP - 30 HP Electric Start Motor
30HP 689-105325 THRU 689-530100 ML - Canada - Cat.# 90-12538 Electric Start Motor
30HP 689-022059 THRU 689-230100 M - Belgium - Cat.# 90-12538 Electric Start Motor
20HP 6A9-550694 & Up - Canada - Cat.# 90-12537 - THRU PROP, EXHAUST Electric Start Motor
20HP 6A9-250101 THRU 250819 - MARINER 20 Electric Start Motor
30HP 689-411947 THRU 689-550100 EL - USA - Cat.# 90-12538 Electric Start Motor
20HP 6A9-306543 & Up - Belgium - Cat.# 90-12537 - THRU PROP, EXHAUST Electric Start Motor
20HP 6A9-550101 THRU 550693 - MARINER 20 Electric Start Motor
20HP 6A9-250820 & Up - USA - Cat.# 90-12537 - THRU PROP, EXHAUST Electric Start Motor
25HP 695-550101 THRU 555959 - USA - Cat.# 90-92571 - THRU PROP EXHAUST Electric Start Motor (E-251106/EL-552121 and Up)
25HP 695-300101 THRU 318173 - USA - Cat.# 90-92571 - THRU PROP EXHAUST Electric Start Motor (E-251106/EL-552121 and Up)
25HP 695-250101 THRU 253861 - Belgium - Cat.# 90-92571 - THRU PROP EXHAUST Electric Start Motor (E-251106/EL-552121 and Up)
25HP 695-000101 THRU 023895 - USA - Cat.# 90-92571 - THRU PROP EXHAUST Electric Start Motor (E-251106/EL-552121 and Up)
40HP 6E9-007666 THRU 6E9-015000 M - Cat.# 90-16643 Electric Starter Motor
40HP 6E9-309344 THRU 350000 ML - Belgium - Cat.# 90-16643 - TWIN CARB W AUTO-BLEND Electric Starter Motor
25HP M 695-023896 AND UP - 25 HP Electric Starter Motor
25HP ML 695-318174 AND UP - 25 HP Electric Starter Motor
40HP 6E9-423163 THRU 450000 EL - Belgium - Cat.# 90-16643 - TWIN CARB W AUTO-BLEND Electric Starter Motor
40HP 6E9-000106 THRU 6E9-007665 M - Belgium - Cat.# 90-97668 - TWIN CARB Electric Starter Motor
40HP 6E9-105014 THRU 6E9-150000 E - USA - Cat.# 90-16643 - TWIN CARB W AUTO-BLEND Electric Starter Motor
25HP EL 695-555960 AND UP - 25 HP Electric Starter Motor
40HP 6E9-100101 THRU 6E9-105013 E - Canada - Cat.# 90-97668 - TWIN CARB Electric Starter Motor
40HP 6E9-500101 & Up - Belgium - Cat.# 90-16643 - TWIN CARB W AUTO-BLEND Electric Starter Motor
40HP 6E9-300126 THRU 6E9-309343 ML - USA - Cat.# 90-97668 Electric Starter Motor
40HP 6E9-400231 THRU 6E9-423162 EL - USA - Cat.# 90-97668 - TWIN CARB Electric Starter Motor
25HP E 695-253862 AND UP - 25 HP Electric Starter Motor
30HP 689-000366 THRU 022058 - Belgium - Cat.# 90-84952 Starter Motor (E-101516/EL-404001 and Up)
30HP 689-401216 THRU 411946 - Belgium - Cat.# 90-84952 Starter Motor (E-101516/EL-404001 and Up)
30HP 689-100251 THRU 105324 - USA - Cat.# 90-84952 Starter Motor (E-101516/EL-404001 and Up)
30HP 689-301911 THRU 321376 - Belgium - Cat.# 90-84952 Starter Motor (E-101516/EL-404001 and Up)
1980 7030320, 1988 7030201NW, 1988 7030211NU, 1992 7030201AW Electric Start Motor
1992 7030312AW, 1992 7030302AW, 1985 7030205, 1986 7030526, 1987 7030717 Electric Start Motor
1987 7030707, 1988 7030312NU, 1988 7030302NU, 1986 7030226, 1986 7030206 Electric Start Motor
1992 7030312AV, 1986 7030506, 1981 7020201, 1985 7030225 , 1988 7030211NW Electric Start Motor
1985 7030525, 1985 7030505, 1992 7030211AW, 1988 7030201NU Electric Start Motor
1980 7025200, 1980 7025320, 1980 7025500 ELECTRIC START MOTOR (E-251105, EL-552120 & BELOW)
1980 7025520, 1980 7025300, 1980 7025220 ELECTRIC START MOTOR (E-251105, EL-552120 & BELOW)
1980 7025220, 1980 7025320, 1980 7025520 ELECTRIC START MOTOR (E-251106, EL-552121 & ABOVE)
1980 7025300, 1980 7025200, 1980 7025500 ELECTRIC START MOTOR (E-251106, EL-552121 & ABOVE)
1985 7040205 Electric Starter Motor, 1986 7026226 Electric Starter Motor
1982 7040202, 1980 7025520, 1987 7040707 Electric Starter Motor
1987 7040737, 1987 7040717, 1986 7040206 Electric Starter Motor
1988 7040302NU, 1980 7025500, 1988 7040201NU Electric Starter Motor
1986 7040226, 1986 7040716, 1985 7040525 Electric Starter Motor
1985 7040505, 1985 7040225, 1982 7040522 Electric Starter Motor
1982 7040502, 1982 7040222, 1988 7040416NU Electric Starter Motor
1988 7040312NU, 1988 7040211NU, 1988 7025201NW Electric Starter Motor
1980 7030520 Starter Motor, 1980 7030220 Starter Motor, 1977 7028527 Starter Motor (E-101515/EL-404000 and Below)
1980 7030300 Starter Motor, 1980 7030500 Starter Motor, 1980 7030200 Starter Motor (E-101515/EL-404000 and Below)
1977 7028527 Starter Motor, 1980 7030300 Starter Motor, 1980 7030220 Starter Motor (E-101516/EL-404001 and Up)
1980 7030520 Starter Motor, 1980 7030200 Starter Motor, 1980 7030500 Starter Motor (E-101516/EL-404001 and Up)
1989 30HP 7030201PU Electric Start Motor, 1989 30HP 7030211PU
1989 30HP 7030302PU, 1990 30HP 7030211SU, 1990 30HP 7030201SU, 1990 30HP 7030312SU, 1990 30HP 7030382SD
1989 30HP 7030312PU, 1990 30HP 7030211SV, 1990 30HP 7030302SU, 1989 40HP 7040201PW, 1989 40HP 7040302PU
1989 40HP 7040211PU, 1989 40HP 7040201PU, 1989 40HP 7040416PU, 1989 40HP 7040312PU Electric Starter Motor
