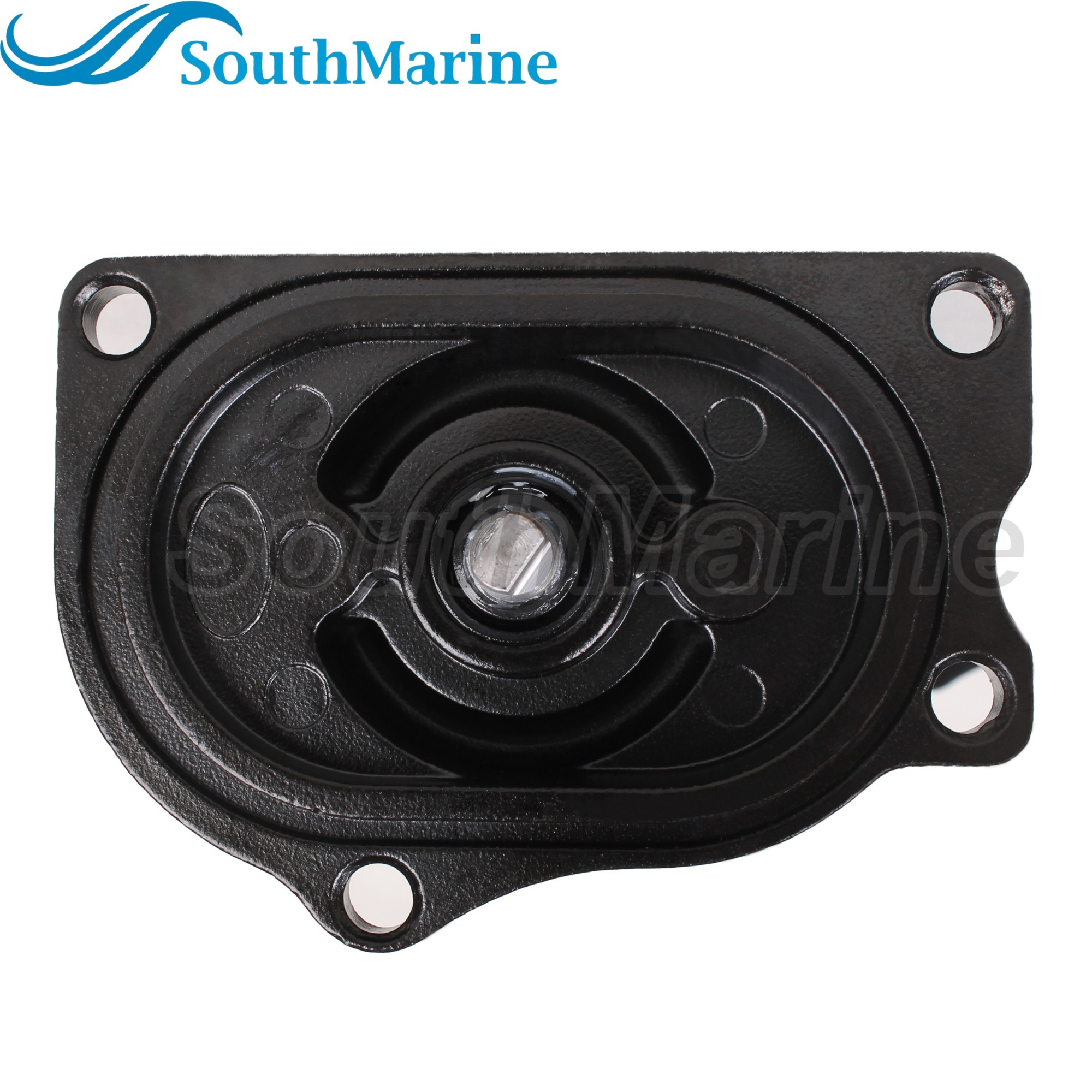

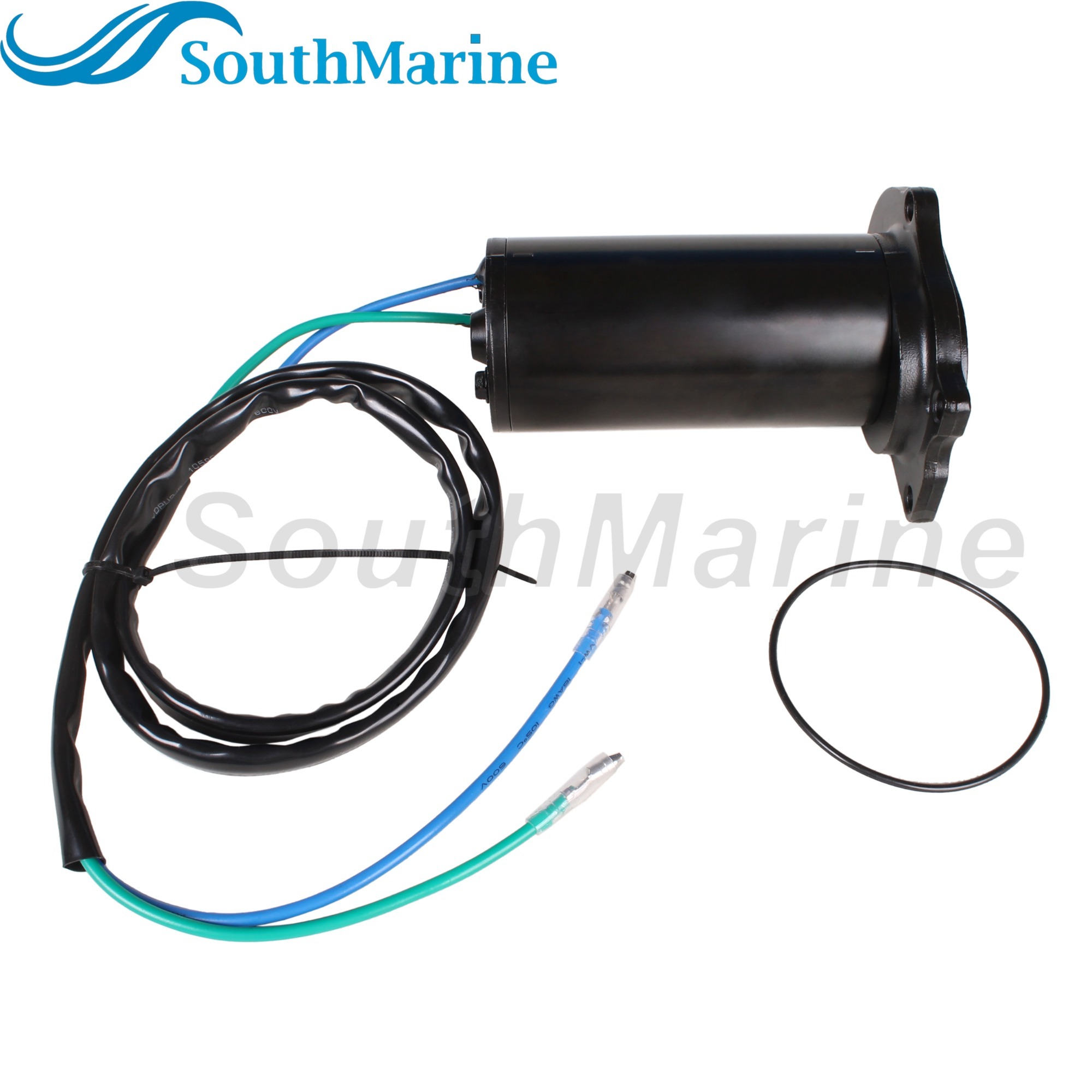

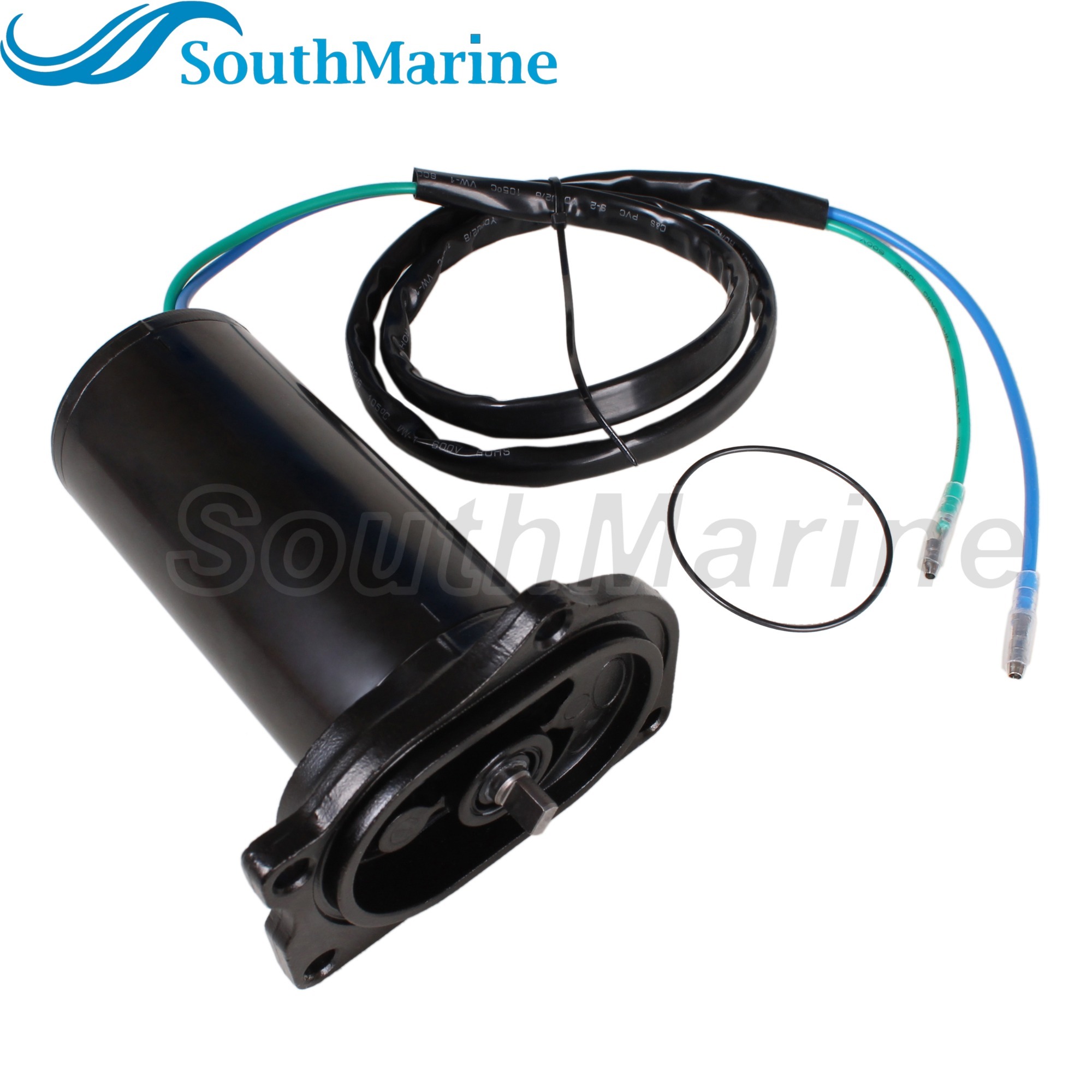

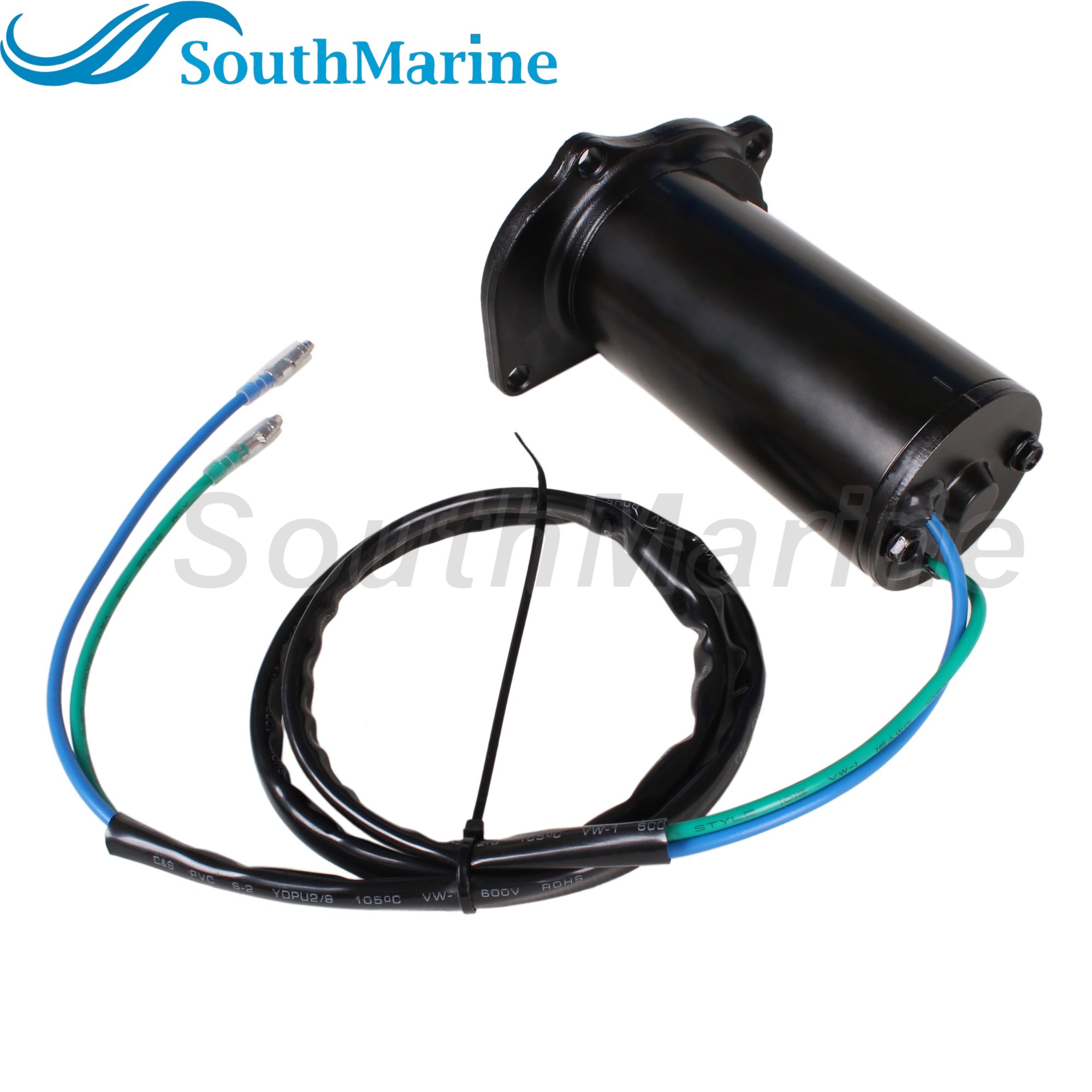

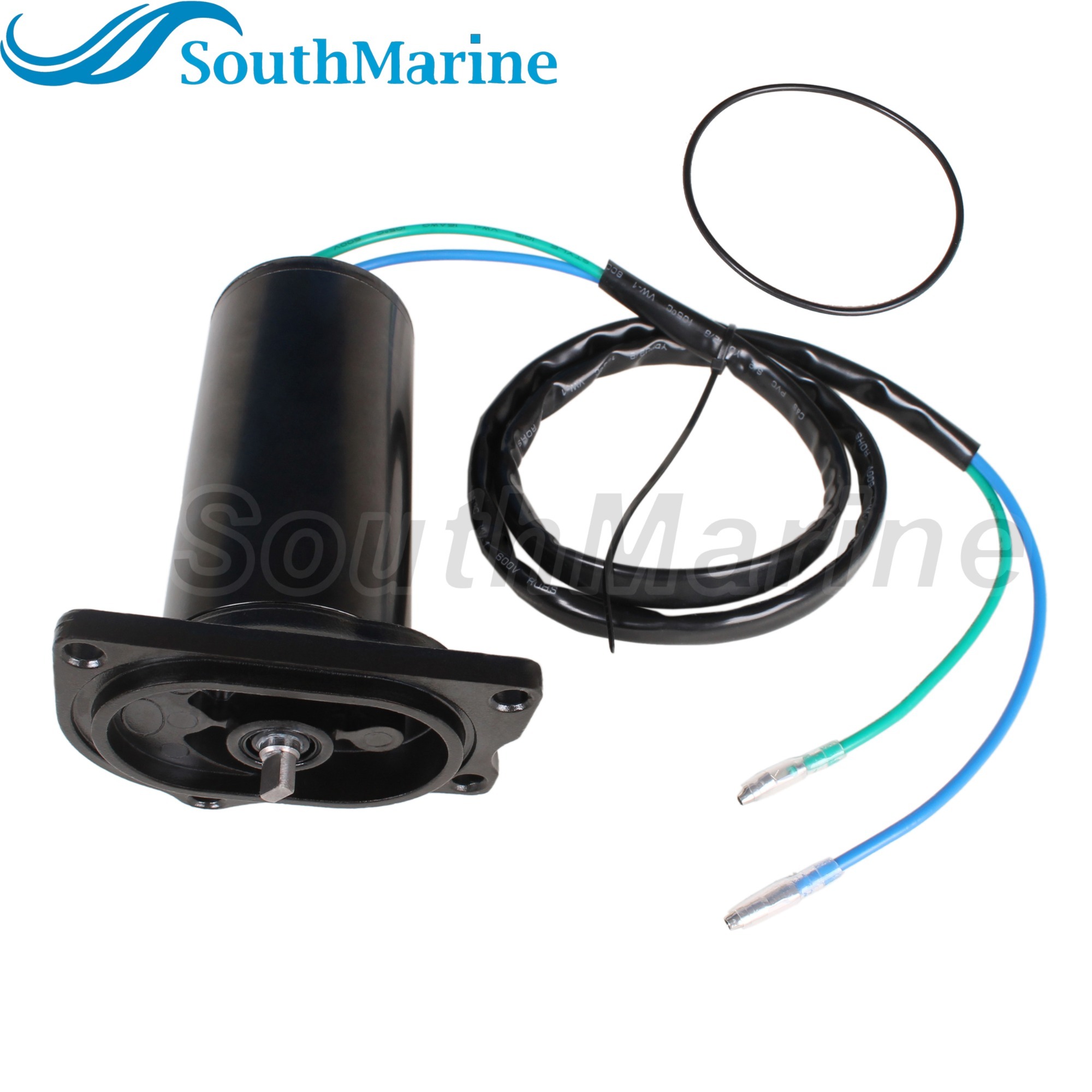

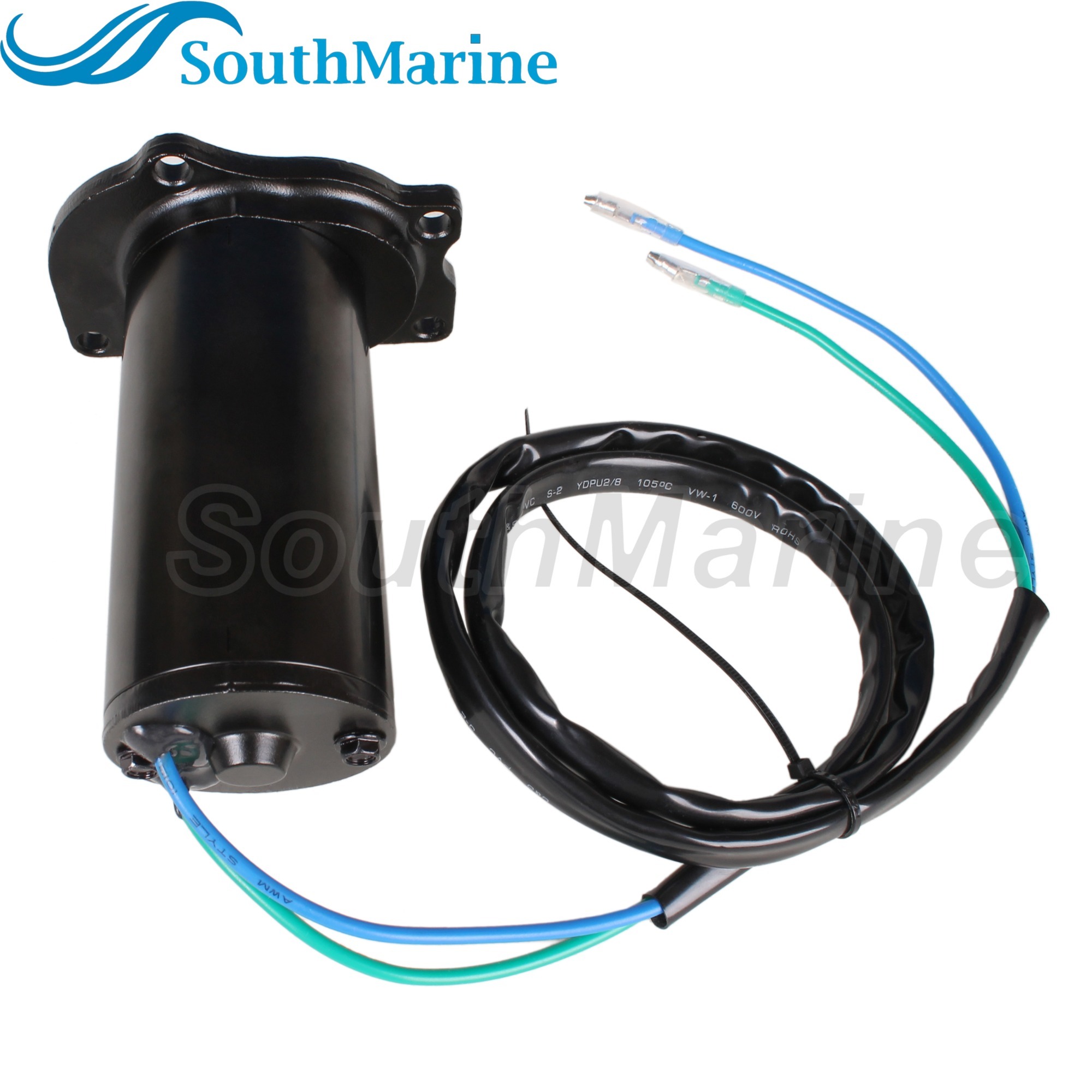

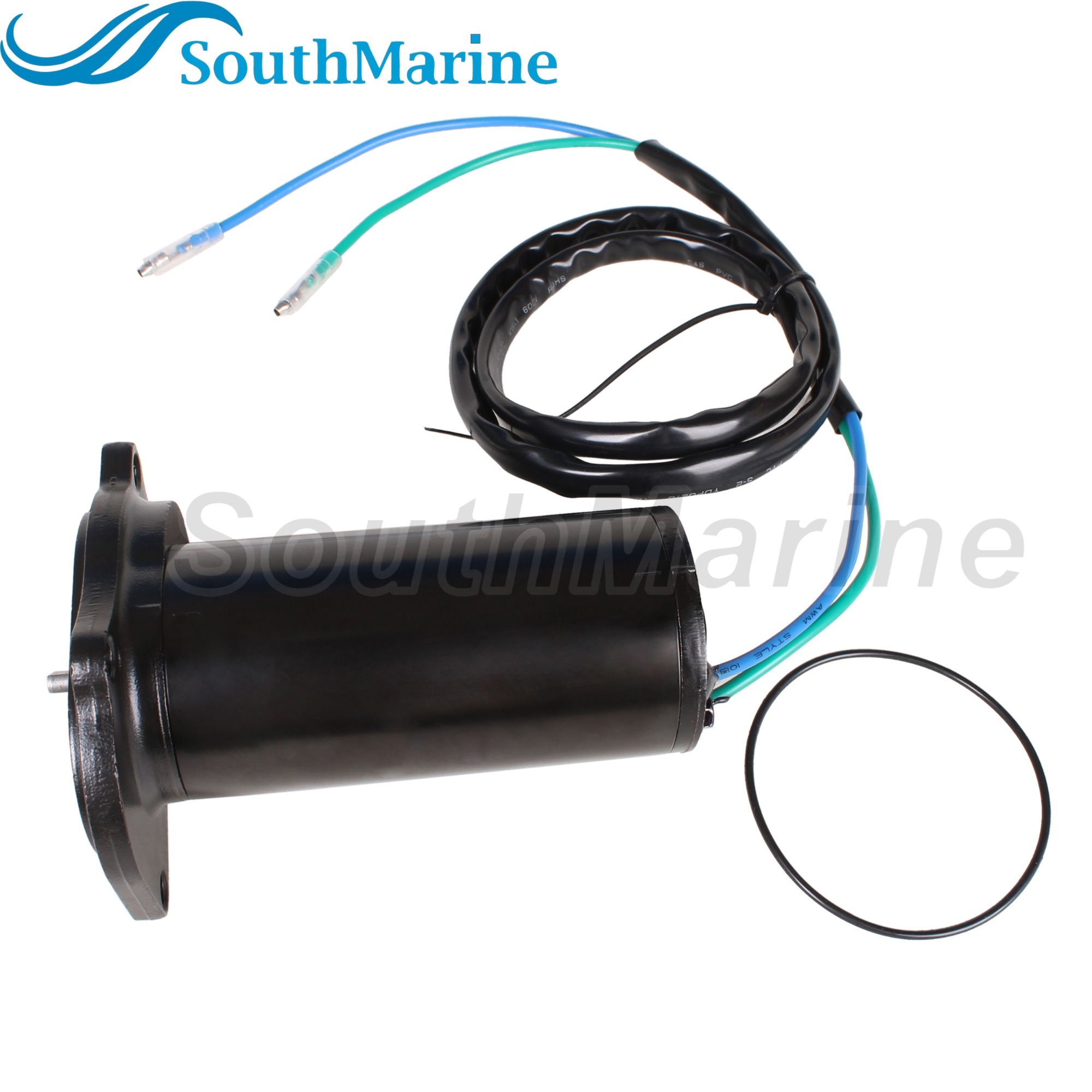

Outboard Motor 827675A1 10828 PT498NM 18-6286 6255 TRM0048 Tilt Trim Motor for Mercury Mercruiser Force 25HP 30HP 40HP 45HP 50HP

> Fit API Marine PT498NM, Fit Arco Marine 6255, Fit Mercury 827675A1, Fit Remy Small Motor  RT05033, Fit Sierra Marine 18-6286, Fit Lester Number 10828
> fit 25HP 30HP 40HP 45HP 50HP
> Replaces OEM Numbers: 827675A1 10828 827675A-1 PT498NM 18-6286 6255
Price:
$95.69
    Please select the information you wantX
  • Ships From:
    United States to United States
    China to the world
Quantity:
-
+
(13 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Shipping
  • Warranty
  • Return
  • Reviews
Outboard Engine 827675A1 10828 827675A-1 PT498NM Tilt Trim Motor for Mercury Mercruiser Force Mariner 25HP 30HP 40HP 45HP 50HP, fit Sierra 18-6286 6255 TRM0048

Description:
Fit API Marine PT498NM, Fit Arco Marine 6255, Fit Mercury 827675A1, Fit Remy Small Motor  RT05033, Fit Sierra Marine 18-6286, Fit Lester Number 10828

fit 25HP 30HP 40HP 45HP 50HP

Replaces OEM Numbers: 827675A1 10828 827675A-1 PT498NM 18-6286 6255 TRM0048

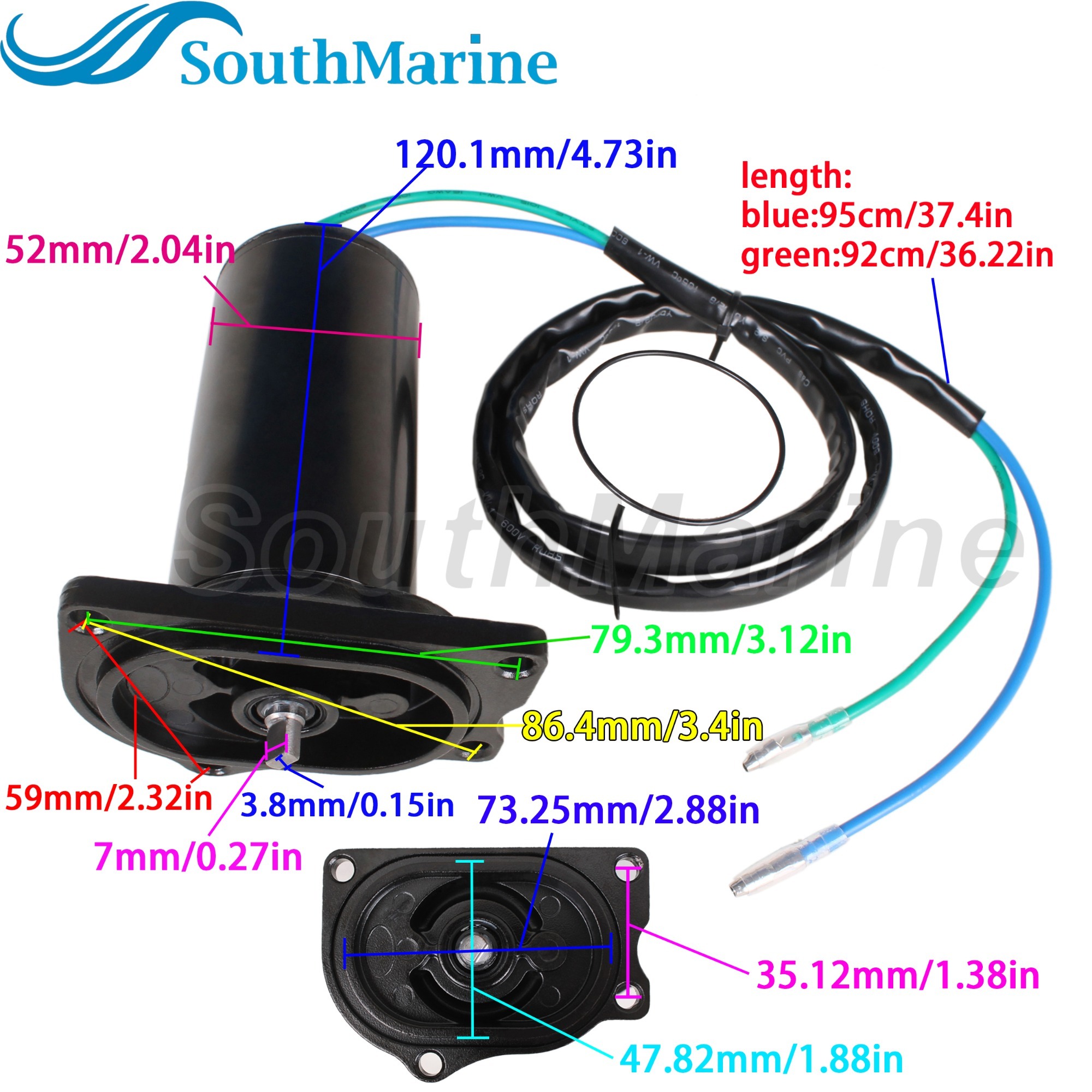

VOLTAGE: 12, ROTATION: REVERSIBLE, SHAFT OUTSIDE DIAMETER: 7.2 MM, SHAFT SPECIFICATIONS: 3.8 MM DRIVE TANG, TERMINAL 1: CRIMP, TERMINAL 2: CRIMP, OVERALL LENGTH: 134 MM / 5.276 IN, FIELD HOUSING OD: 52 MM / 2.047 IN, NOTES: (4) 6.7 MM

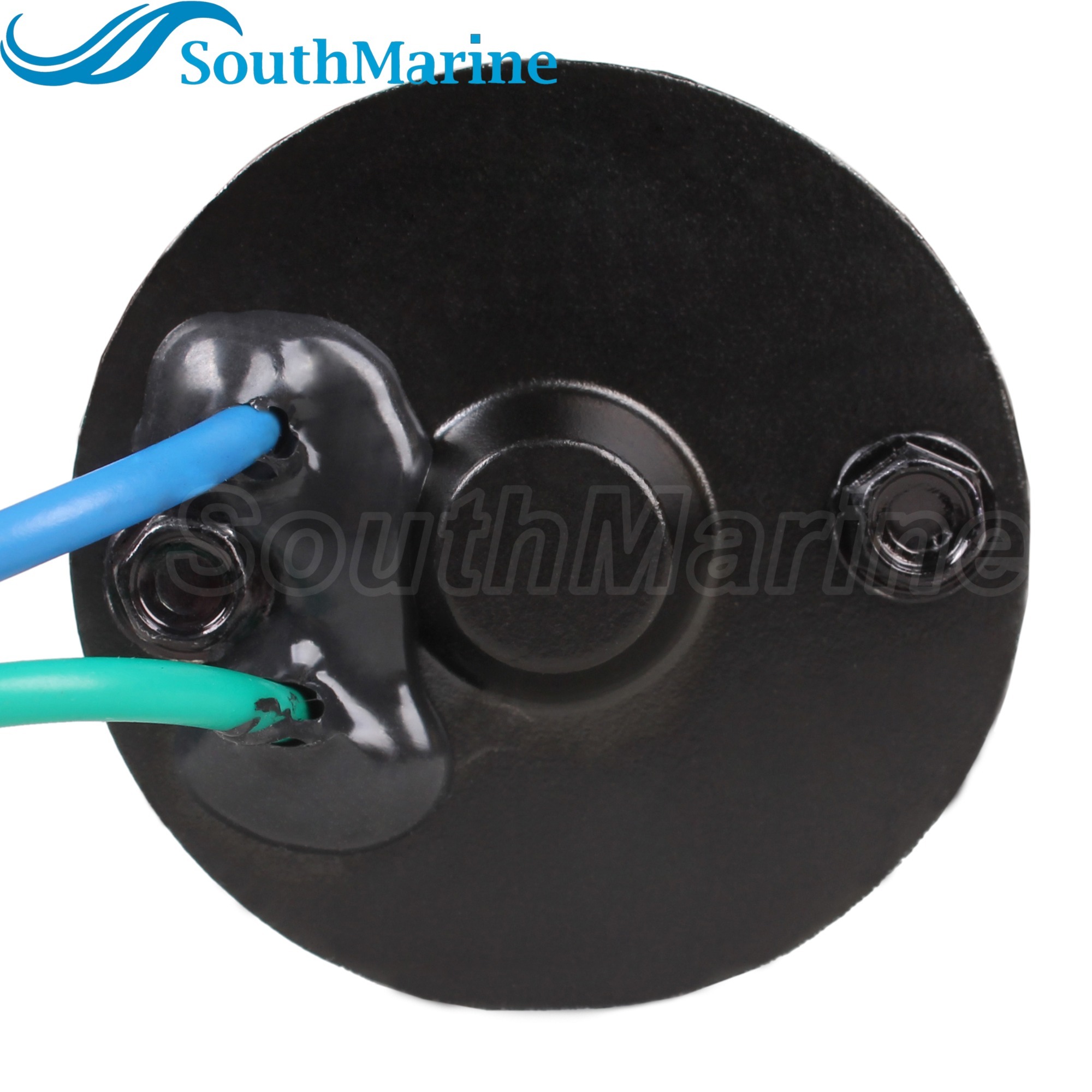

4 Mounting Holes and 2-Wire Connection

If you are unsure, please provide your engine serial number.

Application:
This 827675A1 MOTOR ASSY fits Mercury Mercruiser Force Mariner the following models and components:
50HP 50HP 0G231123 THRU 0G760299 Power Trim (Non Bigfoot)
40HP 40HP 9944807 THRU 0P016999 Power Trim (Non Bigfoot)
50HP 50HP Big Foot 0G231123 THRU 0G760299 Power Trim (Non Bigfoot)
40HP 40HP 0G231123 THRU 0G760299 Power Trim (Non Bigfoot)
50HP 50HP 9944807 THRU 0P016999 Power Trim (Non Bigfoot)
45HP 45HP 0G231123 THRU 0G760299 Power Trim (Non Bigfoot)
50HP 50HP Big Foot 9944807 THRU 0P016999 Power Trim (Non Bigfoot)
45HP 45HP 9944807 THRU 0P016999 Power Trim (Non Bigfoot)
40HP 40HP 9854537 THRU 0P016999 POWER TRIM
30HP 30HP 0P017000 THRU 0P325499 POWER TRIM
30HP 30HP 0P325500 & Up POWER TRIM
40HP 40HP 0G760300 THRU 0T979999 POWER TRIM
40HP 40HP 0P325500 & Up POWER TRIM
40HP 40HP 0T980000 THRU 1B209735 POWER TRIM
40HP 40HP 9973100 THRU 0P016999 POWER TRIM
25HP 25HP 0T409000 THRU 1B344298 POWER TRIM
25HP 25HP 9973100 THRU 0P016999 POWER TRIM
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Power Trim and Tilt Kit(822344A6)
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Power Trim and Tilt Kit(822344A6)
40HP 40HP 0P017000 THRU 0P325499 POWER TRIM
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Power Trim and Tilt Kit(822344A6)
25HP 25HP 0P153500 THRU 0P388282 POWER TRIM
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Power Trim and Tilt Kit(822344A6)
40HP 40HP 0G055314 THRU 0G760299 POWER TRIM
50HP 50HP 9973100 THRU 0P016999 POWER TRIM
50HP 50HP 1B000001 & Up POWER TRIM
30HP 30HP 1B000001 & Up POWER TRIM
50HP 50HP 0G760300 THRU 0T979999 POWER TRIM
40HP 40HP 0T980000 THRU 0T999999 POWER TRIM
30HP 30HP JET 9973100 THRU 0P016999 POWER TRIM
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Pump/Motor Assembly(859725T1)
50HP 50HP 0P325500 & Up POWER TRIM
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Pump/Motor Assembly(859725T1)
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Pump/Motor Assembly(859725T1)
25HP 25HP 0G590000 THRU 0G760299 POWER TRIM
Trim - Tilt - Lift Systems and Components Power Trim and Tilt Pump/Motor Assembly(859725T1)
40HP 40HP 1B000001 & Up POWER TRIM
40HP 40HP 0G590000 THRU 0G760299 POWER TRIM
50HP 50HP 0G590000 THRU 0G760299 POWER TRIM
25HP 25HP 0G760300 THRU 0T408999 POWER TRIM
25HP 25HP 0P017000 THRU 0P153499 POWER TRIM
30HP 30HP 0G760300 THRU 0T979999 POWER TRIM
30HP 30HP 0T980000 THRU 0T999999 POWER TRIM
30HP 30HP 0G055314 THRU 0G760299 POWER TRIM
50HP 50HP 0P017000 THRU 0P325499 POWER TRIM
30HP 30HP JET 0G760300 THRU 0T408999 POWER TRIM
30HP 30HP JET 0G590000 THRU 0G760299 POWER TRIM
50HP 50HP 0T980000 THRU 0T999999 POWER TRIM
30HP 30HP JET 0P017000 THRU 0P153499 POWER TRIM
30HP 30HP 9854537 THRU 0P016999 POWER TRIM
1994 30HP 30HP 7031207CD POWER TRIM
1996 30HP 30HP 7031301ED POWER TRIM
1996 30HP 30HP 7031207EF POWER TRIM
1995 30HP 30HP 7031207DD POWER TRIM
1996 30HP 30HP 7031207ED POWER TRIM
1995 30HP 30HP 7031204DB POWER TRIM
1995 30HP 30HP 7031214DD POWER TRIM
1996 30HP 30HP 7031311ED POWER TRIM
1994 30HP 30HP 7031217CD POWER TRIM
1996 30HP 30HP 7031302ED POWER TRIM
1995 30HP 30HP 7031302DD POWER TRIM
1995 30HP 30HP 7031412DD POWER TRIM
1994 30HP 30HP 7031302CD POWER TRIM
1996 30HP 30HP 7031217ED POWER TRIM
1995 30HP 30HP 7031203DD POWER TRIM
1996 30HP 30HP 7031412ED POWER TRIM
1995 30HP 30HP 7031217DD POWER TRIM
1996 30HP 30HP 7031203ED POWER TRIM
1995 30HP 30HP 7031213DD POWER TRIM
1996 30HP 30HP 7031213ED POWER TRIM
1995 30HP 30HP 7031207DB POWER TRIM
1995 30HP 30HP 7031301DD POWER TRIM
1995 30HP 30HP 7031203DB POWER TRIM
1995 30HP 30HP 7031312DB POWER TRIM
1995 30HP 30HP 7031311DD POWER TRIM
1996 30HP 30HP 7031312ED POWER TRIM
1995 30HP 30HP 7031213DB POWER TRIM
1994 30HP 30HP 7031312CD POWER TRIM
1995 30HP 30HP 7031214DB POWER TRIM
1995 30HP 30HP 7031312DD POWER TRIM
1995 30HP 30HP 7031207DF POWER TRIM
1996 50HP 50HP 7F50411ED Power Trim (Non Bigfoot)
1996 50HP 50HP 7F50412ED Power Trim (Non Bigfoot)
1995 50HP 50HP 7F50412DD Power Trim (Non Bigfoot)
1996 45HP 45HP 7F45412EF Power Trim (Non Bigfoot)
1998 40HP 40HP 0E288000 THRU 0E344999 Trim Assembly, Hydraulic
1999 40HP 40HP 0E345000 THRU 0E369299 Trim Assembly, Hydraulic
1999 50HP 50HP 0E345000 THRU 0E369299 Trim Assembly, Hydraulic
1998 50HP 50HP 0E288000 THRU 0E344999 Trim Assembly, Hydraulic
......
