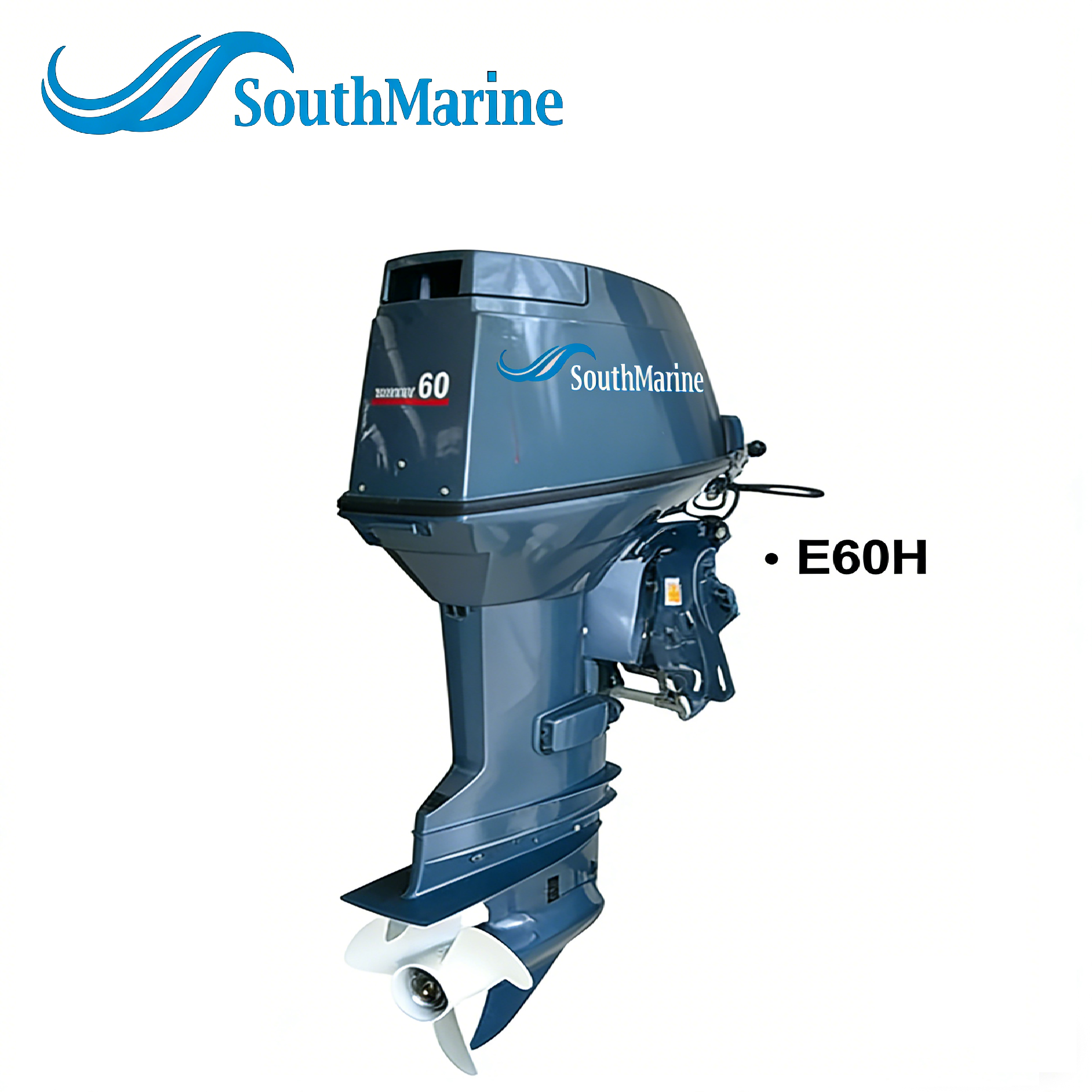

SouthMarine Engines for boats of 60HP Outboard Engine E60HP
SKU: YM-EG-60HP
(0 Reviews)
1 Sold
1/1
| ITEM | E60H |
| Engine type | 2-stroke,2-cylinders, Reed valve |
| Displacement | 246 cc |
| Bore x Stroke mm(in.) | 56.0×50.0(2.20×1.97) |
| Max output kw(hp) | 11(15) |
| Full throttle RPM range | 4500~5500 |
| Ignition system | CDI |
| Starting system | Manual |
| Steering system | Tiller control |
| Gear shift | Forward-Neutral-Reverse |
| Gear ratio | 2.08 (27/13) |
| Trim and tilt system | Manual,4 positions/Shallow drive |
| Max fuel consumption | 7.7 L/h |
| Fuel tank capacity | 24L |
| Oil mixing ratio | 50:1(fuel:oil) |
| Gear oil capacity | 250cc |
| Dry weight | 38kg(S) / 40kg(L) |
| Overall width mm(in.) | 328(12.9) |
| Recommended transom height | 381mm(15 in.) / 508mm(20 in.) |
| Alternator output | 12V DC* |
| Propeller options* | 8",10",11" |
