Your position: Home / Yamaha / Starter / Tilt Trim Motor

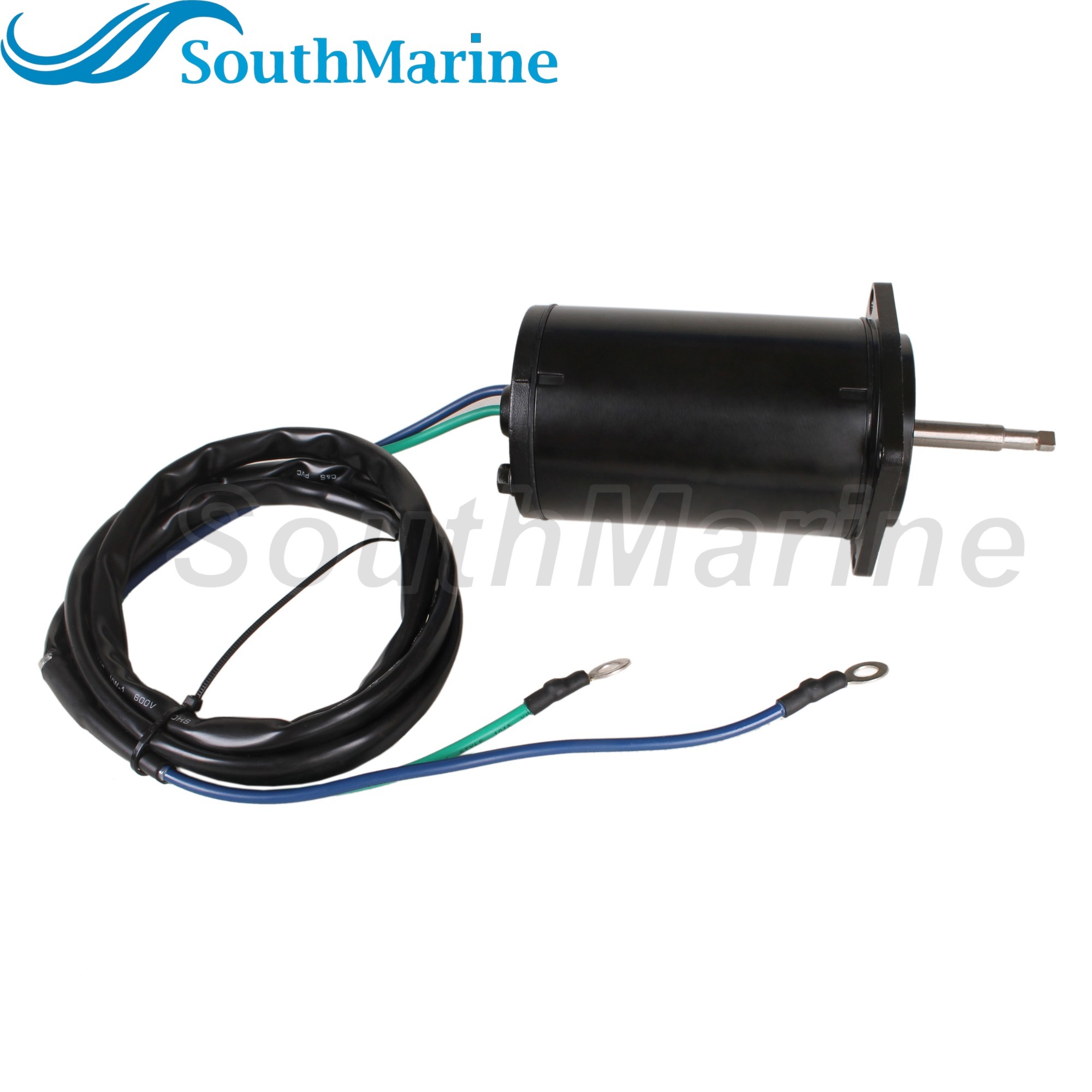

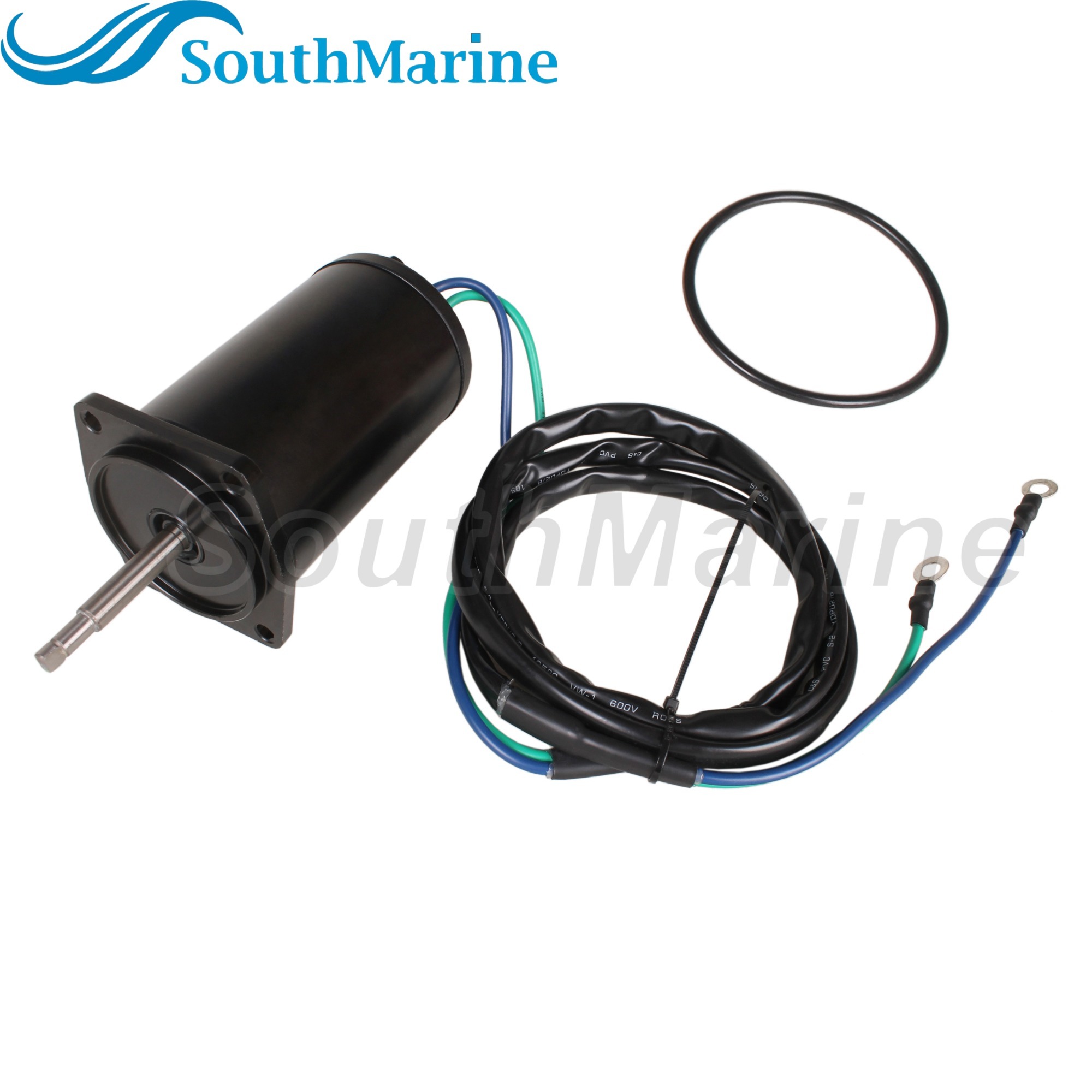

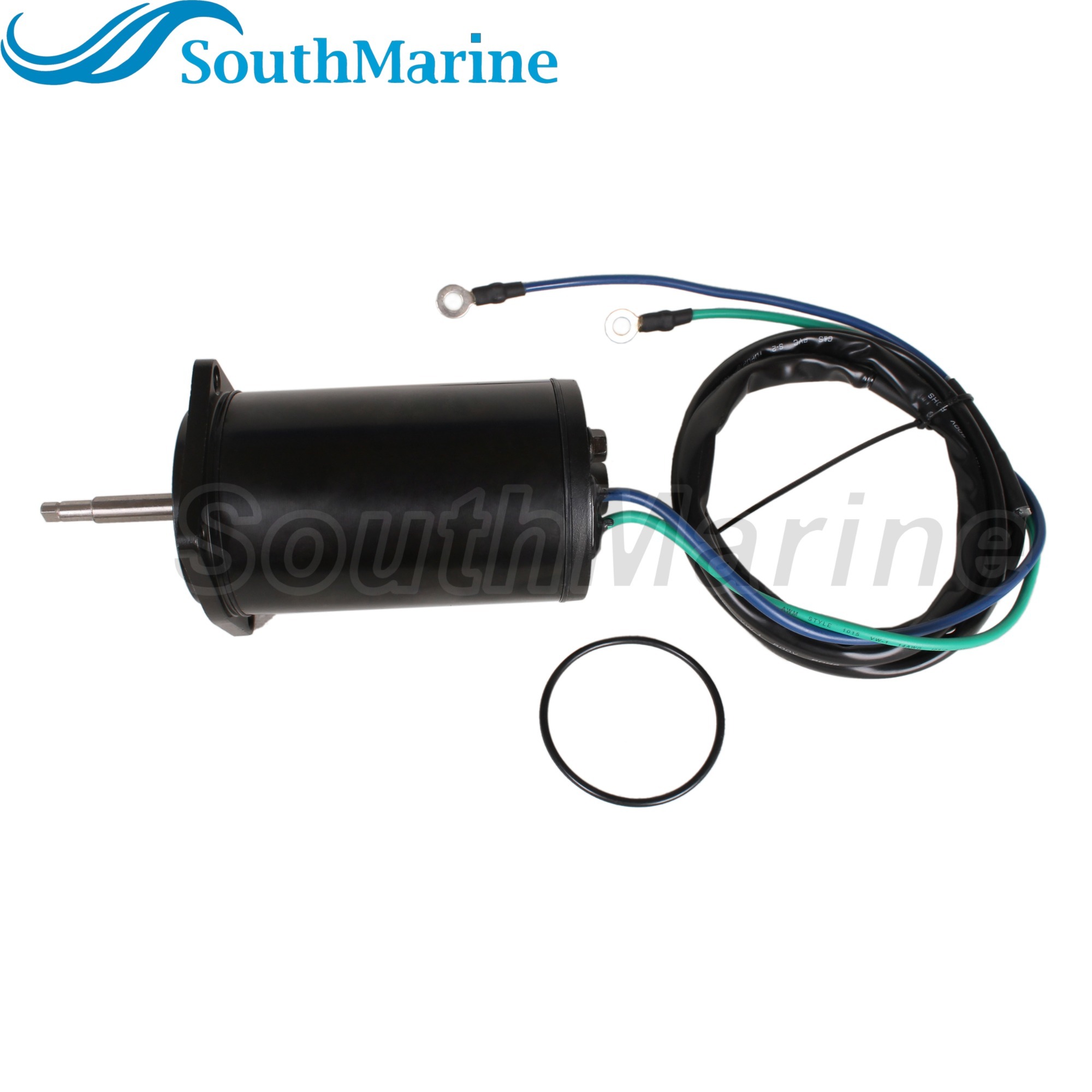

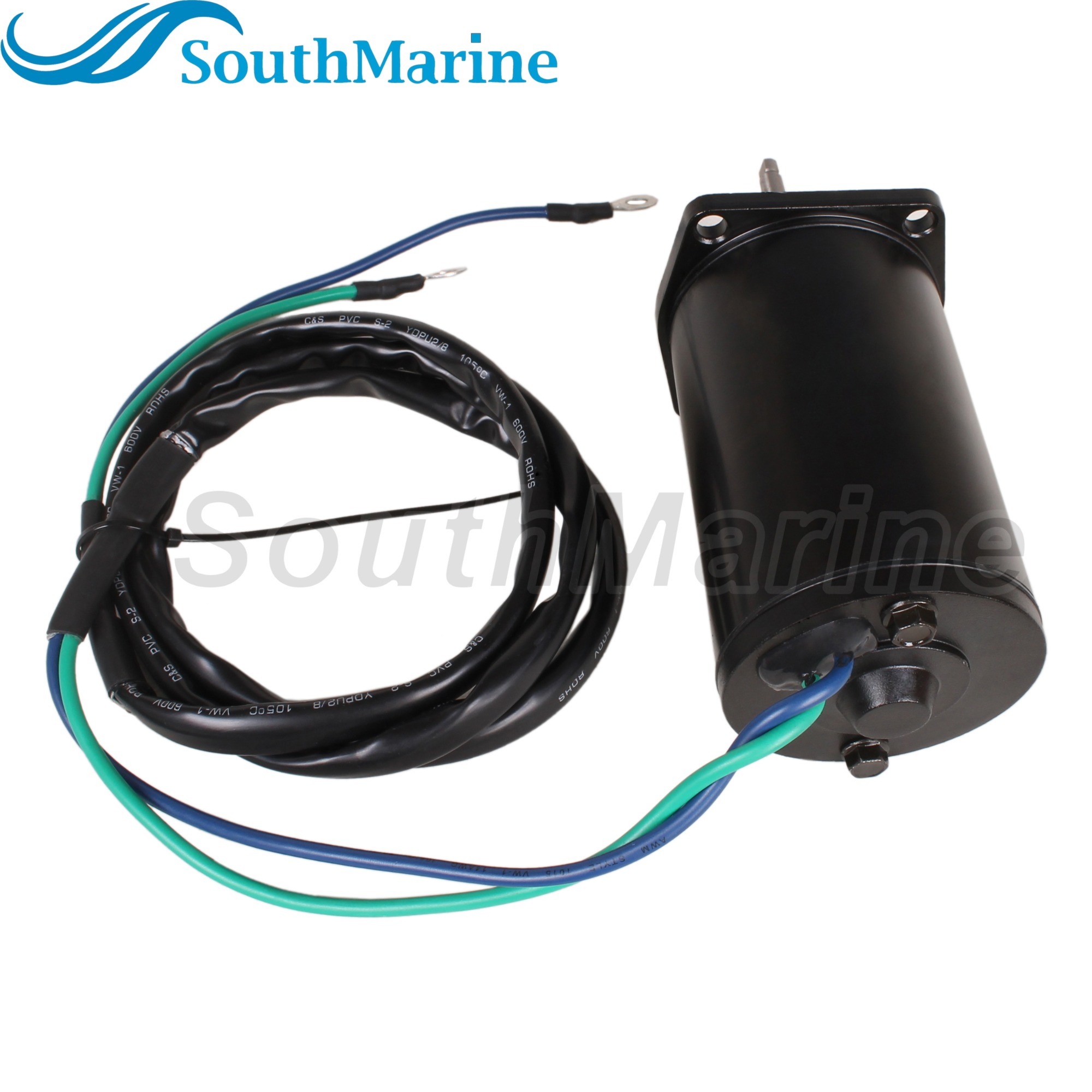

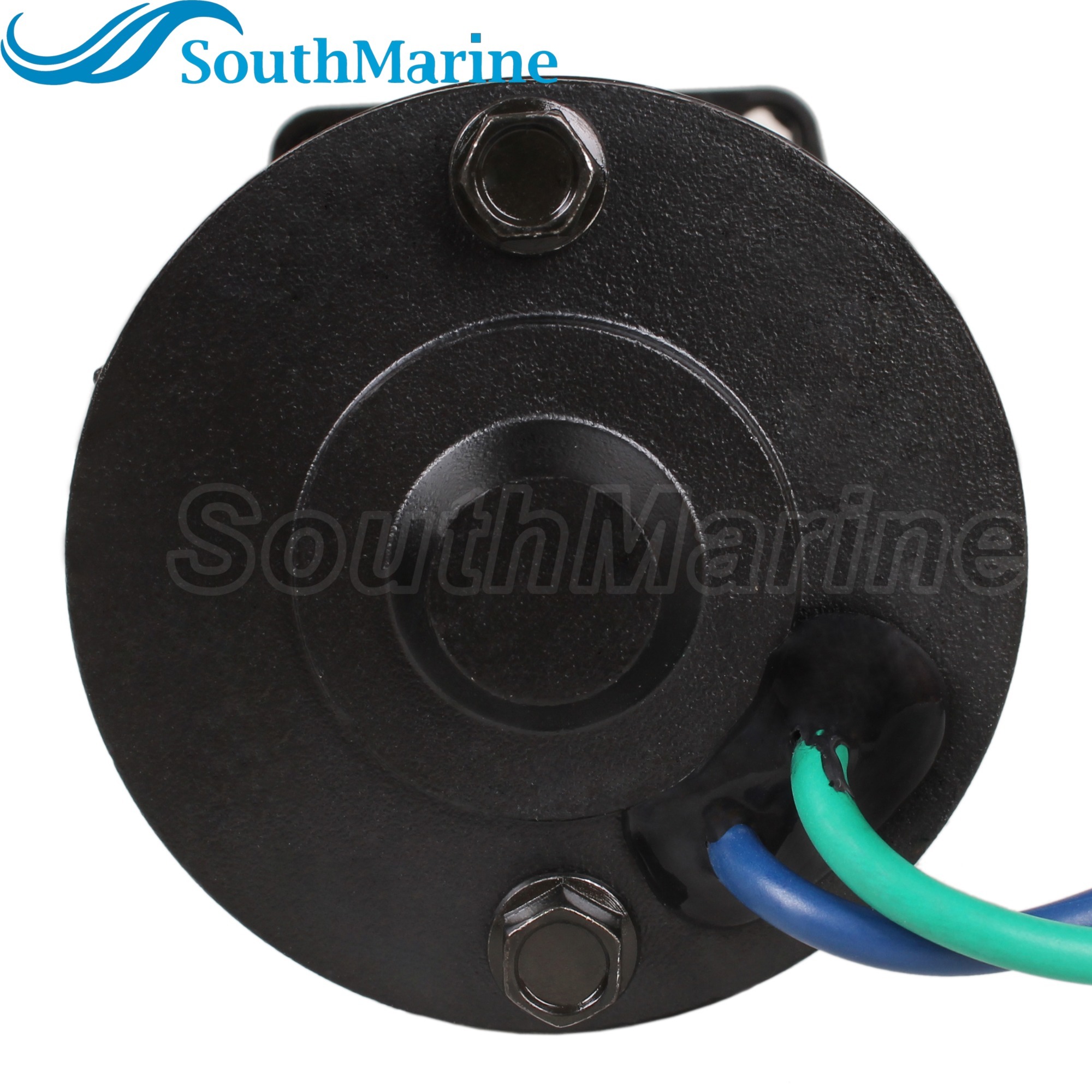

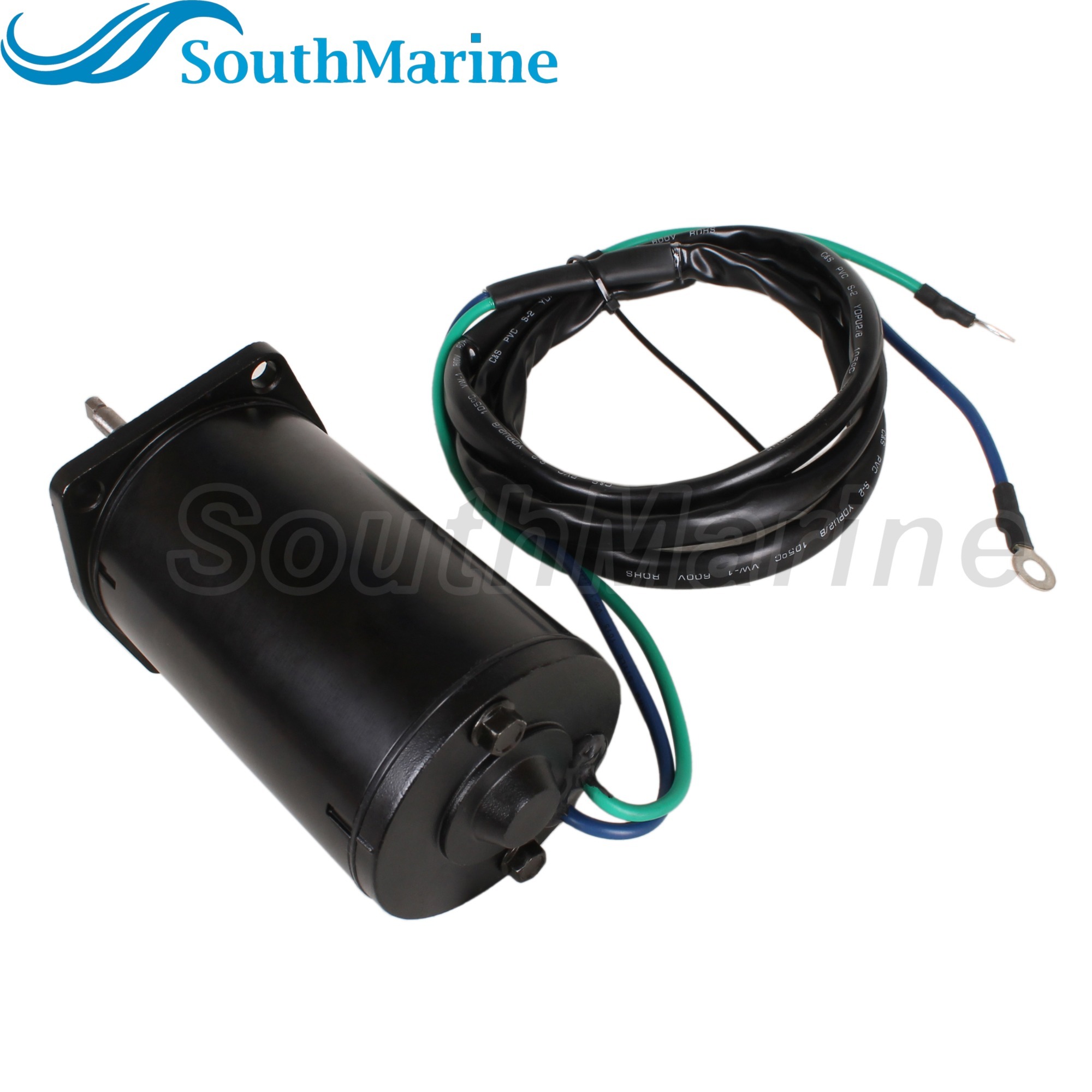

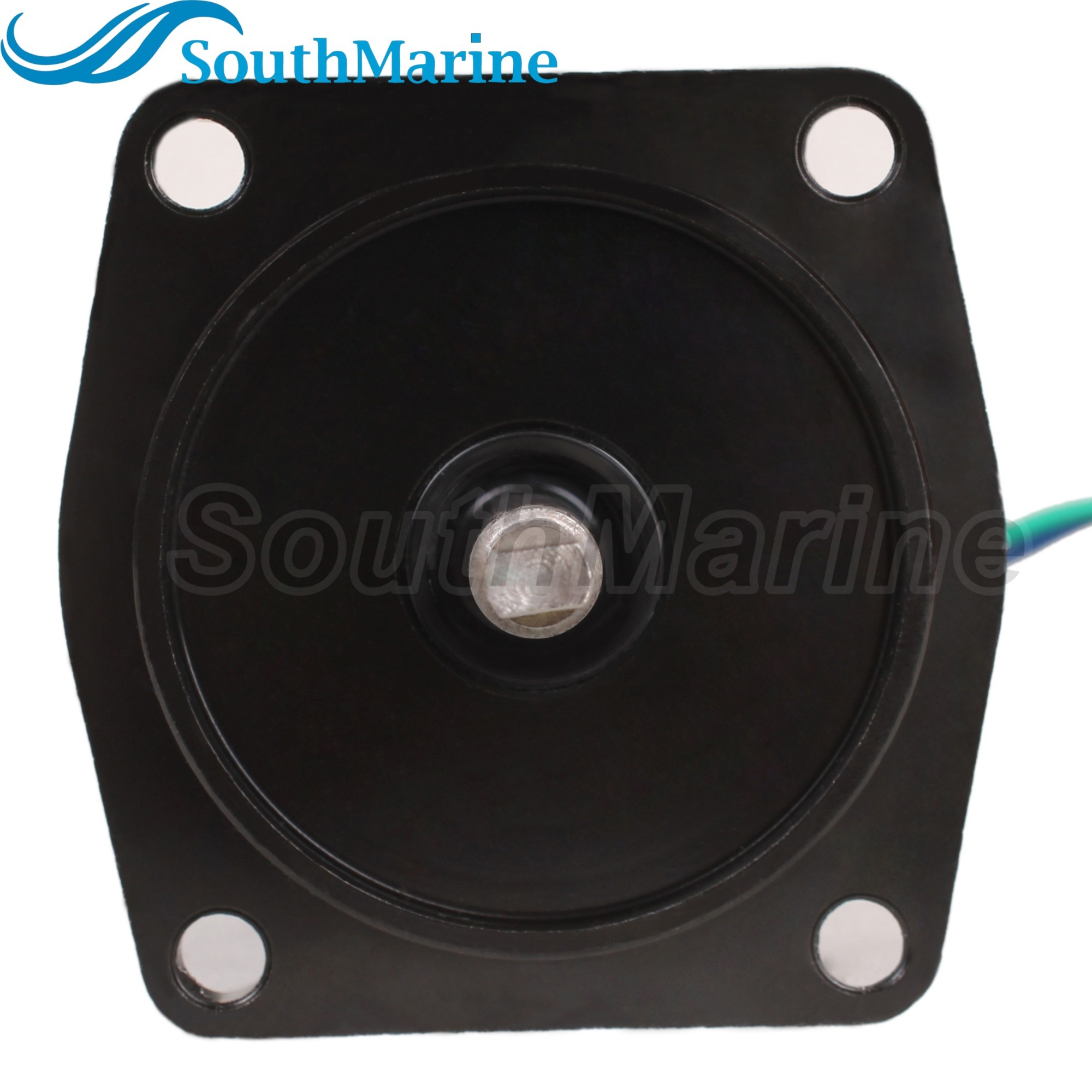

Outboard Motor 6H5-43880-01 6H5-43880-02 6H5-43880-00 6H5-43880-09 18-6788 6264 TRM0059 Tilt Trim Motor for Yamaha 40HP 50HP C40

> VOLTAGE: 12, Rotation: RE, SHAFT OUTSIDE DIAMETER: 11 MM, OVERALL LENGTH: 155.5 MM / 6.122 IN, FIELD HOUSING OD: 67.2 MM / 2.646 IN, 2-wire connection, 4-bolt mount, Includes O-ring,
Price:
$107.69
    Please select the information you wantX
  • Ships From:
    United States to United States
    China to the world
Quantity:
-
+
(13 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Shipping
  • Warranty
  • Return
  • Reviews
Outboard Engine 6H5-43880-01 6H5-43880-02 6H5-43880-00 6H5-43880-09 Tilt Trim Motor for Yamaha 40HP 50HP C40, fit Sierra 18-6788 6264 TRM0059 PT613NM 430-22059

Description:
Fit API MARINE: PT613NM, Fit ARCO MARINE: 6264, Fit ARROWHEAD: 430-22059, Fit EMP PARTS: 4-6788, Fit J & N: 430-22059, Fit LESTER: 10836, Fit SIERRA: 18-6788, Fit WAI: 10836N, Fit YAMAHA: 6H5-43880-01-00, 6H5-43880-02-00, Fit Mallory 9-18408

fit Engine: For YAMAHA: 40EJR 1991-1994, 40EL 1985-1990, 40ELR 1991-1994, 40ES 1985-1990, 40ESR 1991-1994, 40ETL 1985-1989, 40L 1985-1990, 40MJH 1991-1994, 40MLH 1991-1994, 40MSH 1991-1994, 40PLR 1991-1994, 40S 1985-1990, 40SJD 1987-1990, 40TLR 1994, C40ELR 1992-1997, C40ESH 1997, C40MLH 1994-1995, C40MSH 1992-1997, C40PLR 1992-1997, 1985-1992 40HP-50HP C40MSHT C40PLRT C40ELRU C40MSHU

Replaces OEM Numbers: 6H5-43880-01 6H5-43880-02 6H5-43880-00 6H5-43880-09 18-6788 6264 TRM0059 PT613NM Index-DDR965-GTF1-56162 430-22059

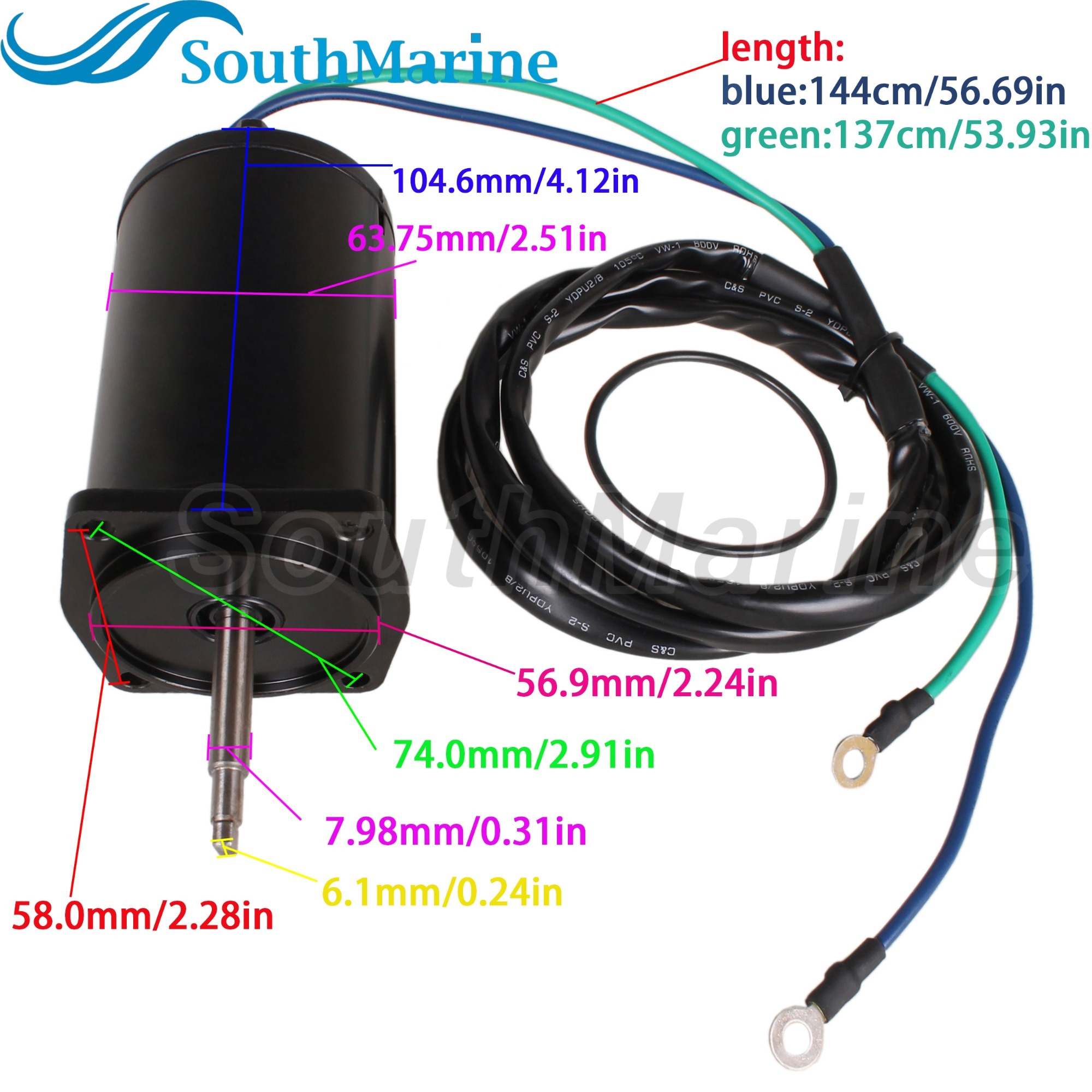

VOLTAGE: 12, Rotation: RE, SHAFT OUTSIDE DIAMETER: 11 MM, OVERALL LENGTH: 155.5 MM / 6.122 IN, FIELD HOUSING OD: 67.2 MM / 2.646 IN, 2-wire connection, 4-bolt mount, Includes O-ring, Ring Terminal Ends

If you are unsure, please provide your engine serial number.

Application:
This 6H5-43880-01 02 00 09.MOTOR ASSEMBLY fits Yamaha the following models and components:
1992 40HP C40PLRQ POWER TILT ASSEMBLY
1989 40HP 40ETLF Power Tilt Assy
1989 40HP 40ESF Power Tilt Assy
1985 50HP 50ETSK Power Tilt Assy
1989 40HP 40ELF Power Tilt Assy
1985 50HP 50ETLK Power Tilt Assy
1984 50HP 50ETLN Power Tilt Assy
1990 40HP 40SD-JD Power Trim & Tilt Assy
1984 50HP 50ETSN Power Tilt Assy
1992 40HP 40PLRQ Power Trim & Tilt Assy
1988 40HP 40SG Power Trim & Tilt Assy
1989 40HP 40SF-JD Power Tilt Assy
1990 40HP 40ELD Power Trim & Tilt Assy
1990 40HP 40ESD Power Trim & Tilt Assy
1988 40HP 40SG-JD Power Trim & Tilt Assy
1988 40HP 40ELG Power Trim & Tilt Assy
1987 40HP 40LH POWER TRIM & TILT ASSEMBLY
1992 40HP 40EJRQ Power Trim & Tilt Assy
1986 40HP 40ELJ Power Trim & Tilt Assy
1991 40HP 40MLHP Power Trim & Tilt Assy
1991 40HP 40MSHP Power Trim & Tilt Assy
1989 40HP 40SF Power Tilt Assy
1987 40HP 40ETLH POWER TRIM & TILT ASSEMBLY
1986 40HP 40ELK Power Trim & Tilt Assy
1992 40HP 40MLHQ Power Trim & Tilt Assy
1985 40HP 40LK Power Trim & Tilt Assy
1992 40HP 40MJHQ Power Trim & Tilt Assy
1991 40HP 40PLRP Power Trim & Tilt Assy
1988 40HP 40ESG Power Trim & Tilt Assy
1987 40HP 40ESH POWER TRIM & TILT ASSEMBLY
1985 40HP 40ETLK Power Trim & Tilt Assy
1987 40HP 40SH POWER TRIM & TILT ASSEMBLY
1986 40HP 40LJ Power Trim & Tilt Assy
1989 40HP 40LF Power Tilt Assy
1992 40HP C40MSHQ POWER TILT ASSEMBLY
1992 40HP C40ELRQ POWER TILT ASSEMBLY
1986 40HP 40SJ Power Trim & Tilt Assy
1986 40HP 40SJ-JD Power Trim & Tilt Assy
1991 40HP 40ELRP Power Trim & Tilt Assy
1987 40HP 40SH-JD POWER TRIM & TILT ASSEMBLY
1986 40HP 40ESK Power Trim & Tilt Assy
1985 40HP 40SK Power Trim & Tilt Assy
1991 40HP 40ESRP Power Trim & Tilt Assy
1986 50HP 50ELJ-JD Power Trim & Tilt Assy
1986 40HP 40ESJ Power Trim & Tilt Assy
1991 40HP 40EJRP Power Trim & Tilt Assy
1992 40HP 40ESRQ Power Trim & Tilt Assy
1992 40HP 40ELRQ Power Trim & Tilt Assy
1987 40HP 40ELH POWER TRIM & TILT ASSEMBLY
1992 40HP 40MSHQ Power Trim & Tilt Assy
1990 40HP 40ETLD Power Trim & Tilt Assy
1986 50HP 50ELJ Power Trim & Tilt Assy
1986 40HP 40ETLJ Power Trim & Tilt Assy
1990 40HP 40SD Power Trim & Tilt Assy
1986 50HP 50ETLJ Power Trim & Tilt Assy
1990 40HP 40LD Power Trim & Tilt Assy
1991 40HP 40MJHP Power Trim & Tilt Assy
1986 50HP 50ESJ Power Trim & Tilt Assy
1988 40HP 40LG Power Trim & Tilt Assy
1988 40HP 40ETLG Power Trim & Tilt Assy
1997 40HP C40ESHV Alternate 5 Power Tilt Assembly PR
1997 40HP C40PLRV Alternate 5 Power Tilt Assembly PR
1997 40HP C40ELRV Alternate 5 Power Tilt Assembly PR
1997 40HP C40MSHV Alternate 5 Power Tilt Assembly PR
1995 40HP C40PLRT Power Tilt Assembly (C40PR)
1995 40HP C40MSHT Power Tilt Assembly (C40PR)
1995 40HP C40MLHT Power Tilt Assembly (C40PR)
1995 40HP C40ELRT Power Tilt Assembly (C40PR)
1994 40HP C40MSHS Power Tilt Assembly (C40PR)
1994 40HP C40ELRS Power Tilt Assembly (C40PR)
1994 40HP C40PLRS Power Tilt Assembly (C40PR)
1994 40HP C40MLHS Power Tilt Assembly (C40PR)
1996 40HP C40PLRU POWER TILT ASSEMBLY (PR)
1996 40HP C40MSHU POWER TILT ASSEMBLY (PR)
1996 40HP C40ELRU POWER TILT ASSEMBLY (PR)
1994 40HP 40TLRS POWER TILT ASSEMBLY 1 (40PR)
1994 40HP 40ESRS POWER TILT ASSEMBLY 1 (40PR)
1994 40HP 40ELRS POWER TILT ASSEMBLY 1 (40PR)
1994 40HP 40MSHS POWER TILT ASSEMBLY 1 (40PR)
1994 40HP 40MJHS POWER TILT ASSEMBLY 1 (40PR)
1994 40HP 40EJRS POWER TILT ASSEMBLY 1 (40PR)
1994 40HP 40PLRS POWER TILT ASSEMBLY 1 (40PR)
1994 40HP 40MLHS POWER TILT ASSEMBLY 1 (40PR)
1993 40HP 40ESRR Power Trim & Tilt Assy
1993 40HP 40MJHR Power Trim & Tilt Assy
1993 40HP 40EJRR Power Trim & Tilt Assy
1993 40HP 40ELRR Power Trim & Tilt Assy
1993 40HP 40MLHR Power Trim & Tilt Assy
1993 40HP C40ELRR POWER TILT ASSEMBLY
1993 40HP 40PLRR Power Trim & Tilt Assy
1993 40HP C40MSHR POWER TILT ASSEMBLY
1993 40HP C40PLRR POWER TILT ASSEMBLY
1993 40HP 40MSHR Power Trim & Tilt Assy
......
