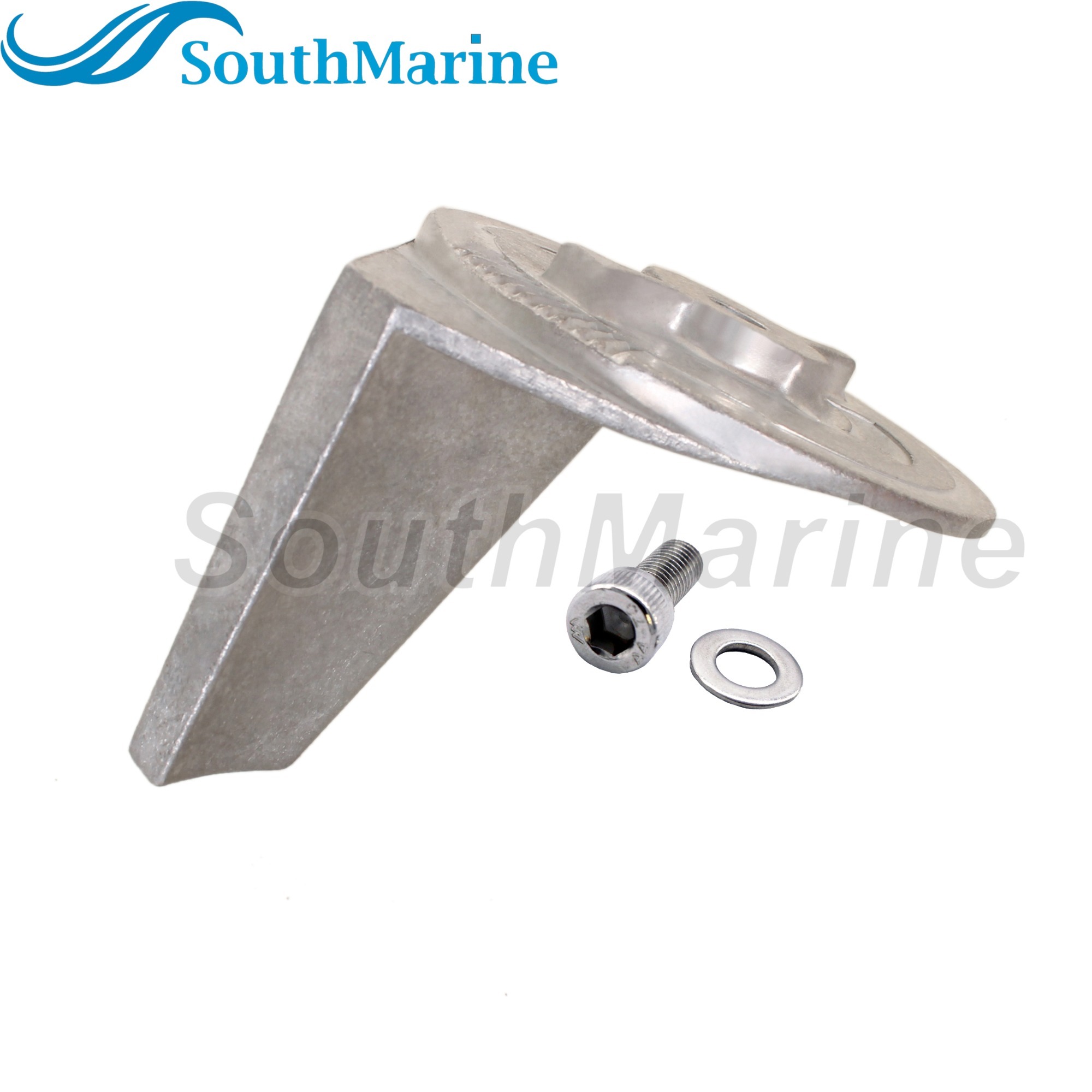

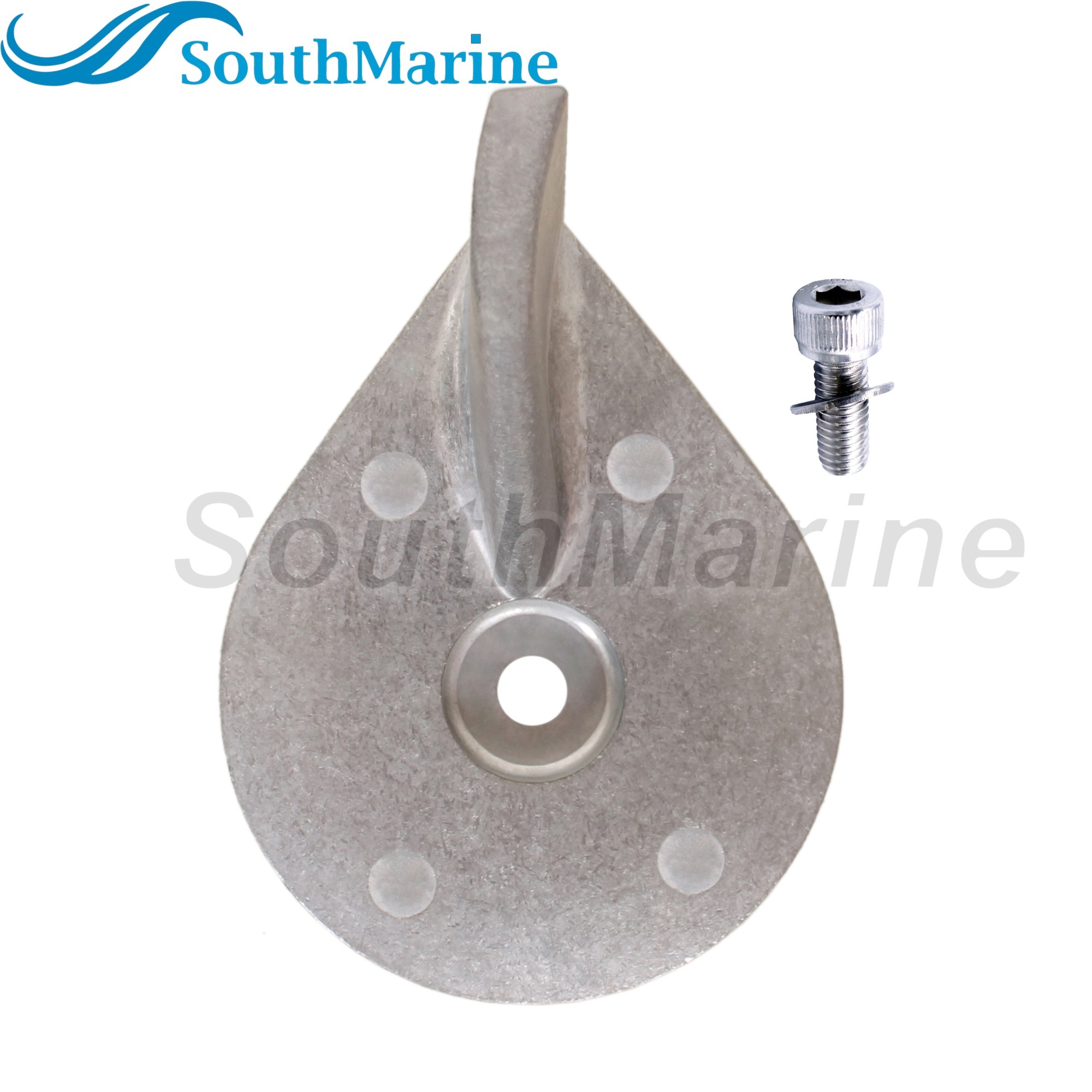

Description:
Zinc Alloy
Engine: 25HP 30HP 35HP 40HP 45HP 50HP 2/4 Stroke
Replaces Part OEM Number#: 822157T2 822157C2
Fits the F25 FourStroke (Carb models), F30 FourStroke (0G760300‑1B226999, 0P094500‑0P400999),
F40 FourStroke 3‑cylinder (0G760300‑1B344398, 0P094500 and above), F40/45/50 FourStroke (935cc, standard gearcase).
Anode design moves the trim tab further aft/back to allow for the use of propellers with a higher rake design.
Inspect anodes periodically for best protection and replace when seeing signs of corrosion or pitting to help keep your maintenance costs down
Zinc anode 822157AT2 is for various Mercury and Mariner 4-stroke outboards. See your owner's manual or service manual for specific application and installation instructions. Anode design moves the trim tab further aft/back to allow for the use of propellers with a higher rake design. Zinc anodes deliver corrosion protection in more harsh, saltwater applications than aluminum anodes
Application:
This 822157T2 TRIM TAB fits Mercury the following models and components:
40HP 0G760300 THRU 0T979999 Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
40HP 0T980000 THRU 0T999999 Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
30HP 0T980000 THRU 0T999999 Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
40HP 0P017000 THRU 0P325499 Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
40HP 0P325500 & Up Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
40HP 1B000001 & Up Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
30HP 1B000001 & Up Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
30HP 0P017000 THRU 0P325499 Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
30HP 0P325500 & Up Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
30HP 0G760300 THRU 0T979999 Gear Housing (Propeller Shaft)(2.00:1 Gear Ratio)
25HP 0G760300 THRU 0T408999 Gear Housing (Propeller Shaft)(2.41:1 Gear Ratio)
25HP 0T409000 THRU 1B344298 Gear Housing (Propeller Shaft)(2.41:1 Gear Ratio)
25HP 0P153500 THRU 0P388282 Gear Housing (Propeller Shaft)(2.41:1 Gear Ratio)
25HP 0P017000 THRU 0P153499 Gear Housing (Propeller Shaft)(2.41:1 Gear Ratio)
50HP 1B000001 & Up Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
50HP 0P017000 THRU 0P325499 Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
50HP 0P325500 & Up Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
30HP JET 0G760300 THRU 0T408999 Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
40HP 0T980000 THRU 1B209735 Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
50HP 0T980000 THRU 0T999999 Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
50HP 0G760300 THRU 0T979999 Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
30HP JET 0P017000 THRU 0P153499 Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio
40HP 0P017000 THRU 0P094499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
50HP Big Foot 0P017000 THRU 0P094499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
50HP 0G760300 THRU 0T178499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
45HP 0P017000 THRU 0P094499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
50HP Big Foot 0G760300 THRU 0T178499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
45HP 0G760300 THRU 0T178499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
50HP 0P017000 THRU 0P094499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
40HP 0G760300 THRU 0T178499 Gear Housing, Propeller Shaft - 1.83:1 GearRatio-Non Bigfoot
40HP EFI 0T409000 THRU 1B226999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
30HP 0P017000 THRU 0P153499 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
30HP 0P153500 THRU 0P400999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
30HP EFI 0P153500 THRU 0P400999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
40HP 0P017000 THRU 0P153499 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
30HP EFI 0T409000 THRU 1B226999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
40HP 0T409000 THRU 1B226999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
30HP 0T409000 THRU 1B226999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
40HP 0P153500 THRU 0P400999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
40HP 0G760300 THRU 0T408999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
30HP 0G760300 THRU 0T408999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
40HP EFI 0P153500 THRU 0P400999 Gear Housing, Propeller Shaft - 2:1 Gear Ratio
40HP 1B227000 THRU 1B344306 Gear Housing, Propeller Shaft-Short-2:1 Gear Ratio
40HP 0P401000 & Up Gear Housing, Propeller Shaft-Short-2:1 Gear Ratio
40HP EFI 1C000001 THRU 1C049738 Gear Housing, Propeller Shaft-Short-2:1 Gear Ratio
40HP EFI 0P401000 THRU 0P515896 Gear Housing, Propeller Shaft-Short-2:1 Gear Ratio
40HP EFI 1B227000 THRU 1B355027 Gear Housing, Propeller Shaft-Short-2:1 Gear Ratio
40HP 1C000001 THRU 1C018825 Gear Housing, Propeller Shaft-Short-2:1 Gear Ratio
40HP EFI 1C000001 THRU 1C043416 Gear Housing, Propeller Shaft-Short-2:1 Gear Ratio
......
