Description:
Engine Position: Outboard Engine 2HP 2-Stroke 2MSH 2S
Replaces Part Number: 6A1-W0078 6A1-W0078-01 6GD-W0078-00 814453M 96339M

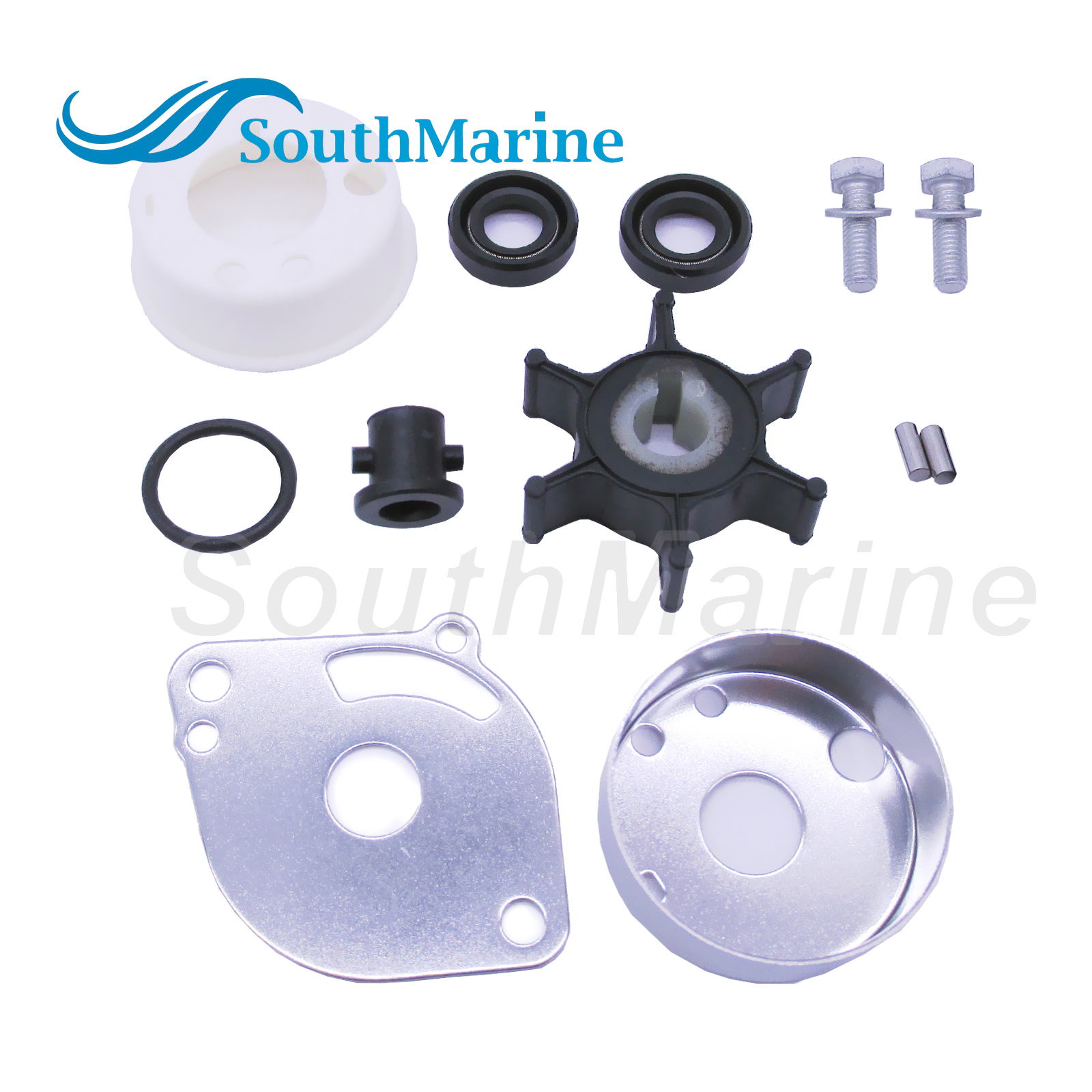

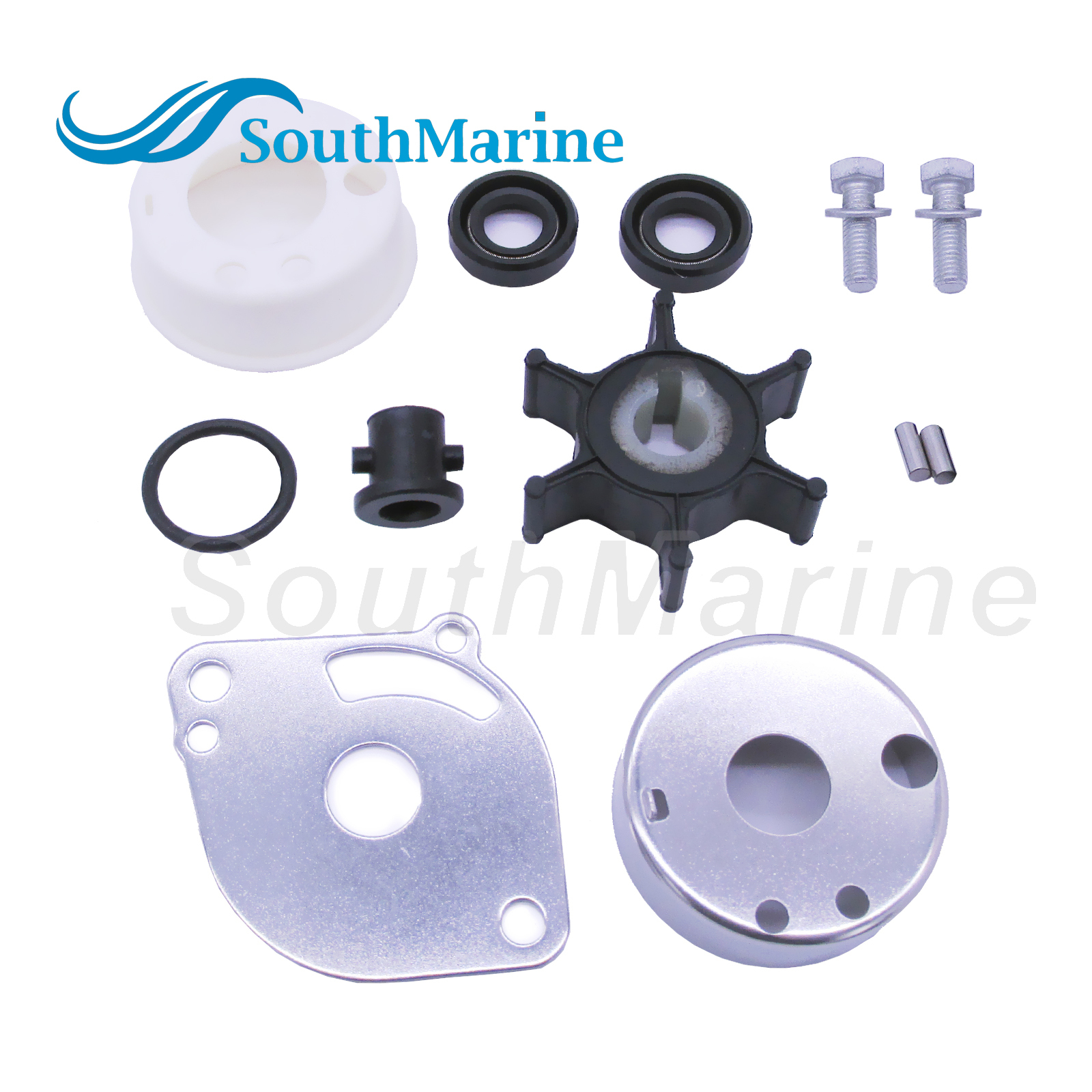

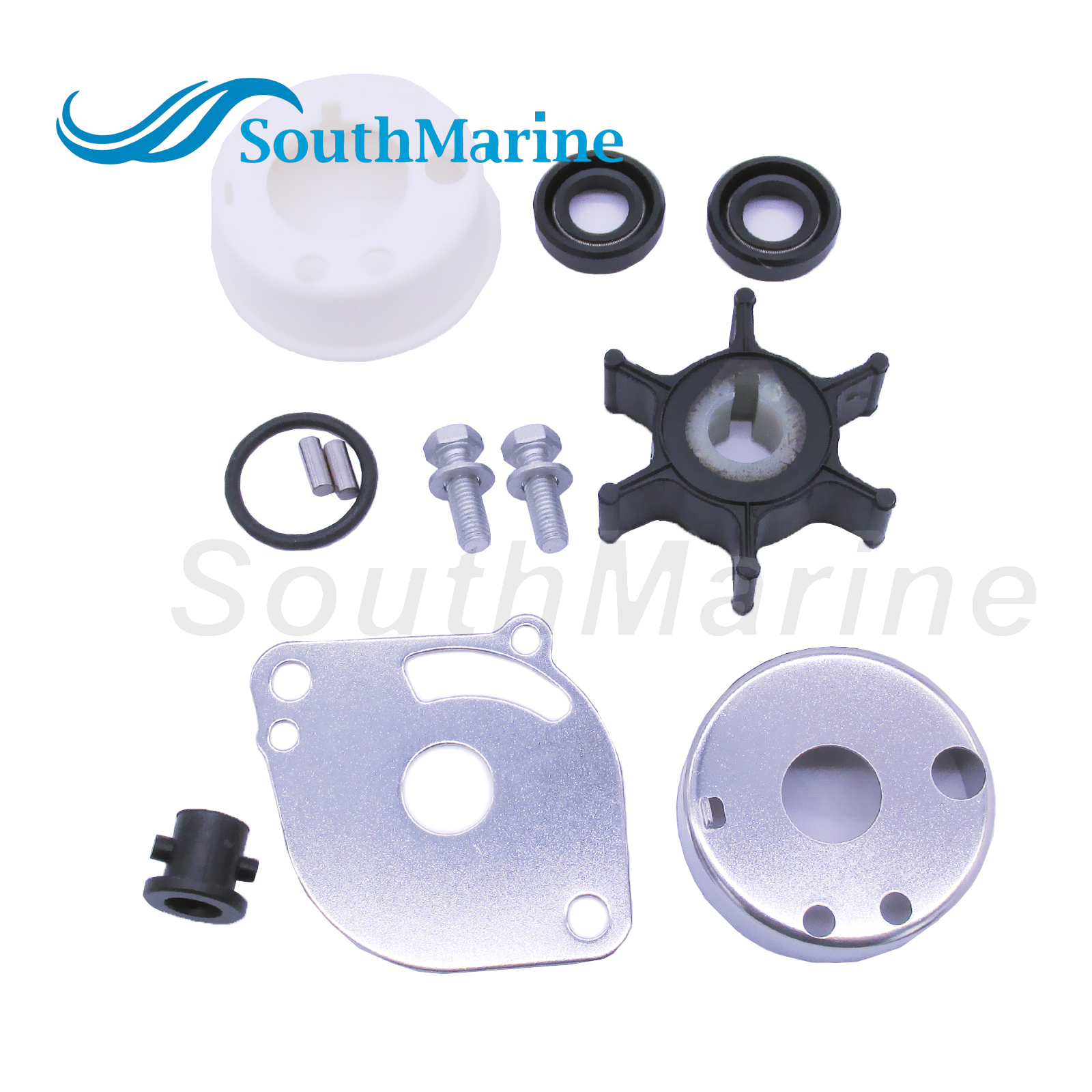

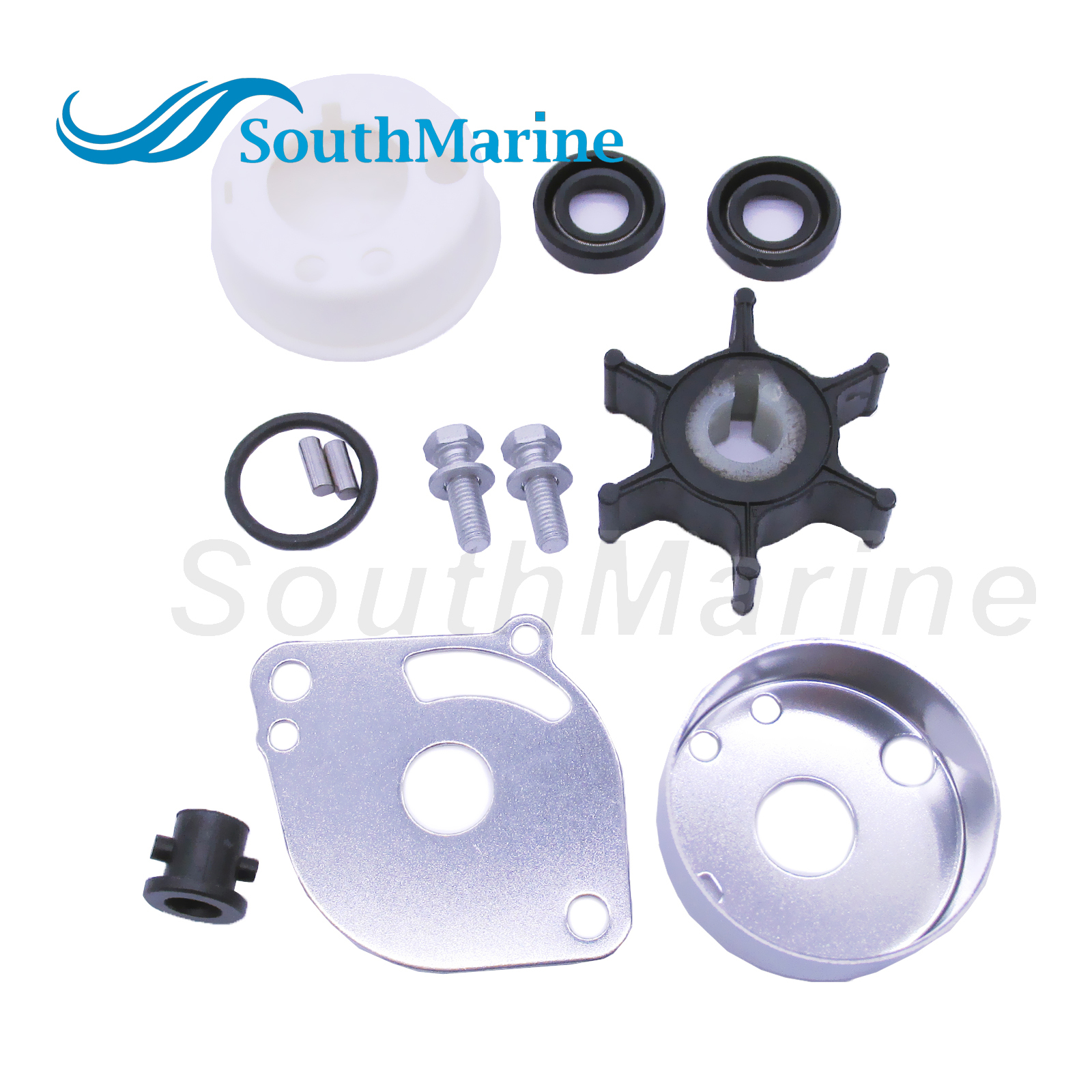

Contains:
18-1079 - Protector, Oil Seal - 6A1-44325-00-00 - 1

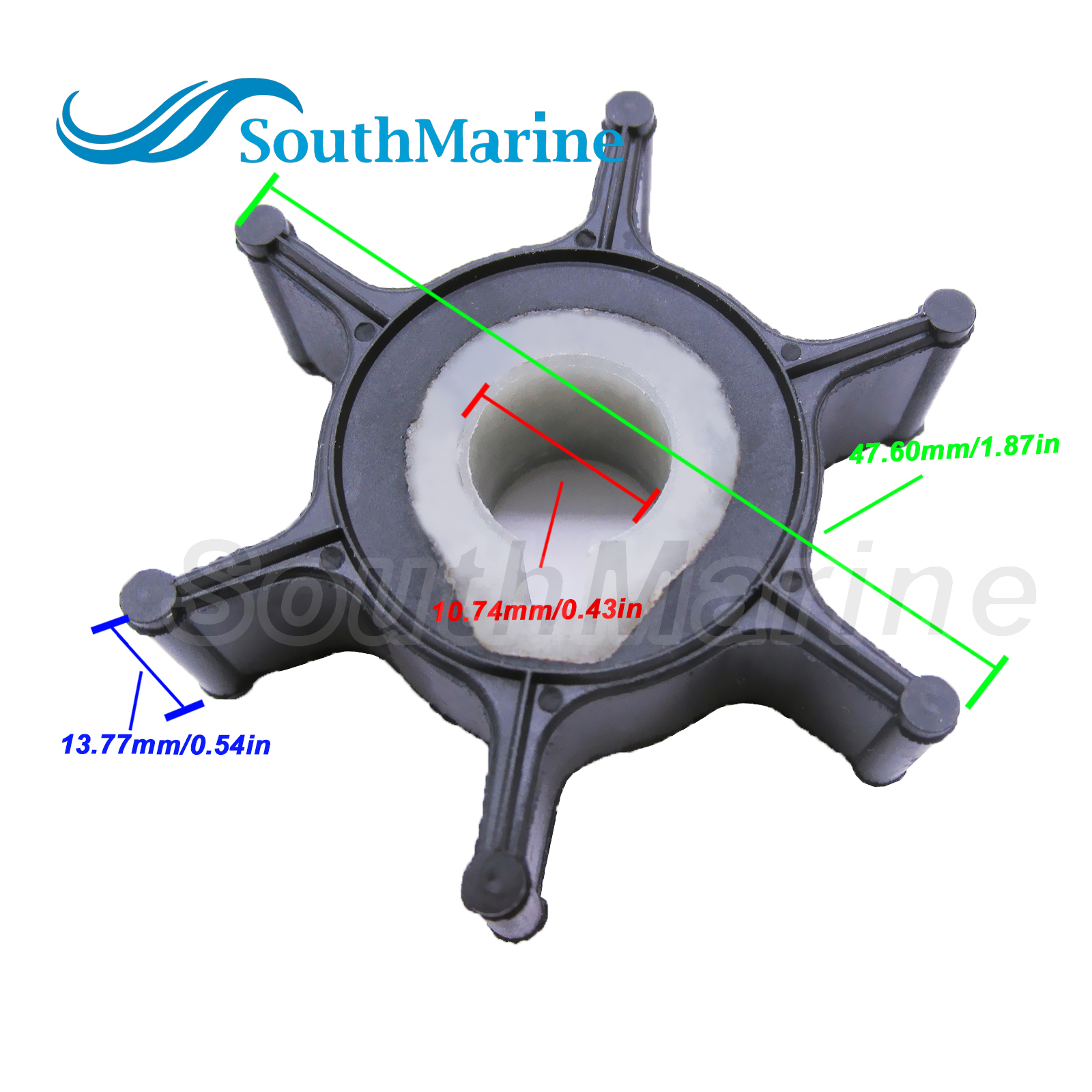

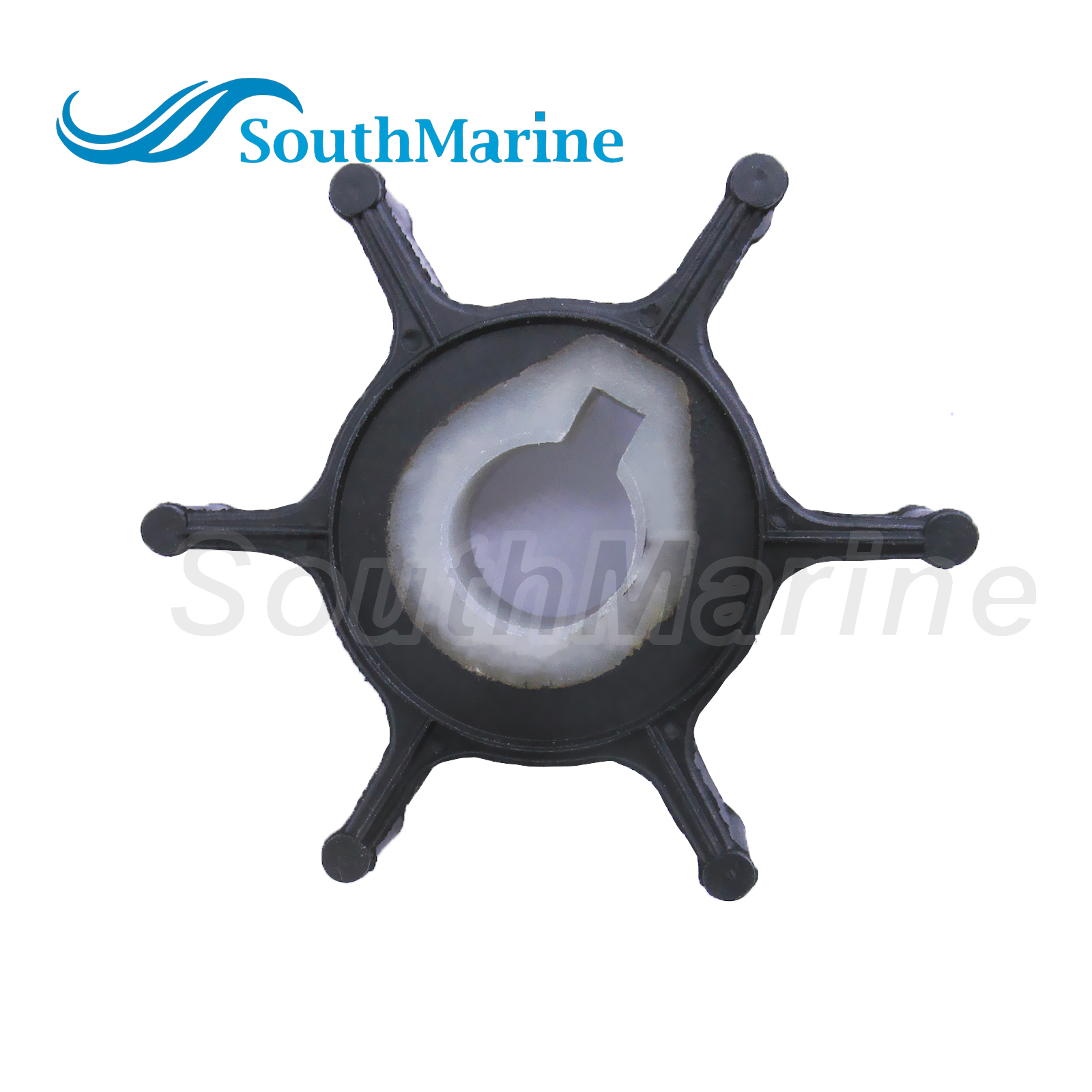

18-3072 - Impeller - 646-44352-01-00 - 1
18-3328 - Cup, Insert - 646-44322-00-00 - 1
18-3357 - Plate, Wear - 646-44323-00-00 - 1
18-7463 - O-Ring - 93210-19123-00 - 1
NSS - Seal, Water - 646-44366-01-00 - 1
NSS - Seal, Oil - 93101-11M44-00 - 2
NSS - Pin, Dowel - 93604-09068-00 - 2
NSS - Bolt - 97095-05016-00 - 2
If you are unsure, please provide your engine serial number.
Application:
This 6A1-W0078-02-00 WATER PUMP REPAIR KIT fits Yamaha the following models and components:
2HP 2MSHT 1995 Repair Kit
2HP 2MSHW 1998 Repair Kit
2HP 2SF 1989 Repair Kit
2HP 2MSHQ 1992 Repair Kit
2HP 2SD 1990 Repair Kit
2HP 2MSHR 1993 Repair Kit
2HP 2MSHV 1997 Repair Kit
2HP 2MSHP 1991 Repair Kit
2HP 2MSHS 1994 Repair Kit
2HP 2MSHA 2002 Repair Kit
2HP 2MSHU 1996 Repair Kit
2HP 2MSHKZ 2001 Repair Kit 1
2HP 2MSHX 1999 Repair Kit 1
2HP 2MSHZ 2001 Repair Kit 1
2HP 2MSHY 2000 Repair Kit 1
This 814453M REPAIR KIT fits Mercury the following models and components:
25HP 25HP 6A1-000101 & Up Gearhousing Assembly
2HP 2HP 7002200 1980 Gearhousing Assembly
2HP 2B 6A1-000101 & Up Gearhousing Assembly
2HP 2HP 7002205 1985 Gearhousing Assembly
.......
