Description:
TYPE: PMGR
VOLTAGE: 12 VOLTS
KW: 1.4 KW
ROTATION: CCW

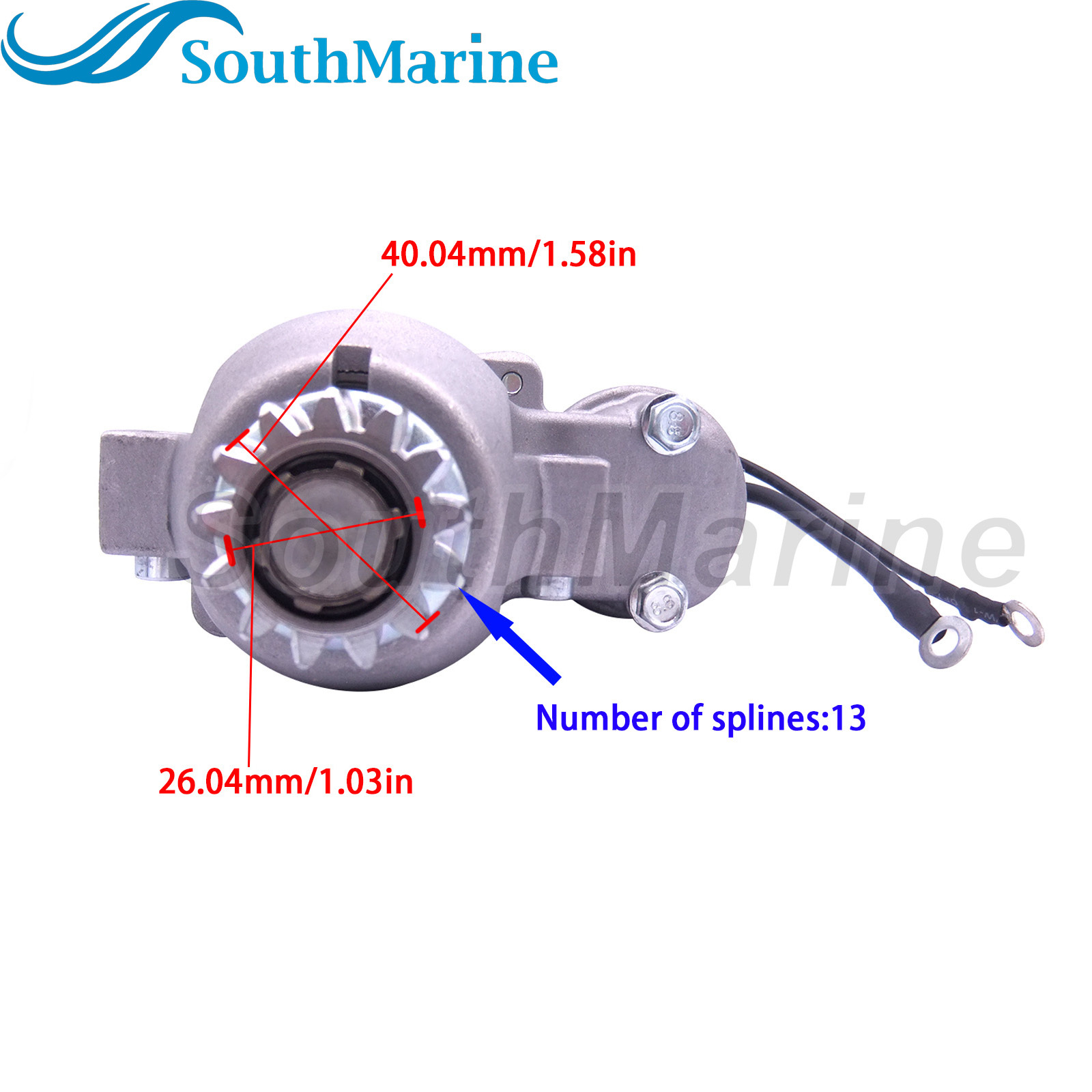

TEETH: 13 TEETH
PINION/SPLINES OD: 39.9MM / 1.571IN

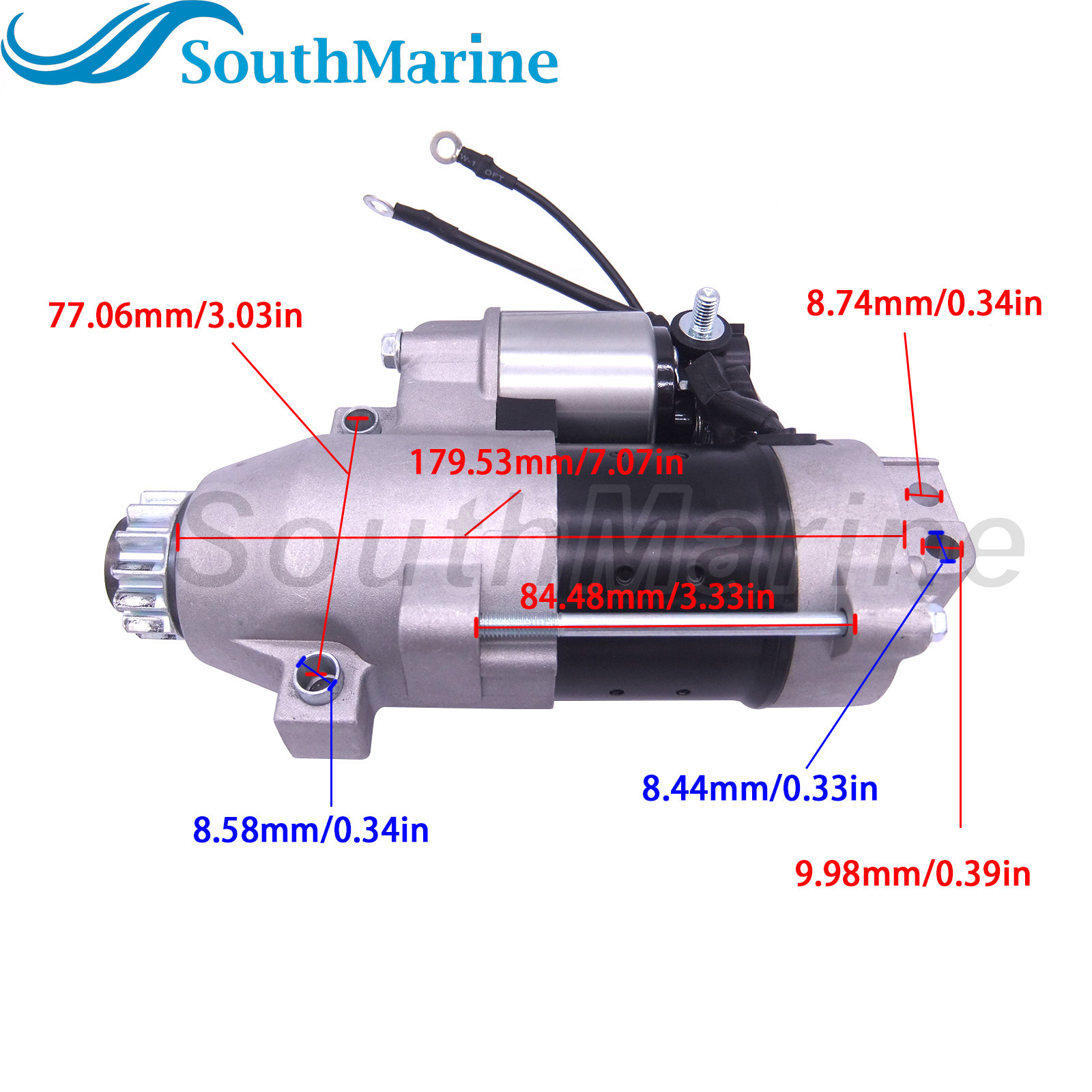

MOUNTING HOLE 1: 8.5 ID UNTHREADED
MOUNTING HOLE 2: 8.5 ID UNTHREADED
MOUNTING HOLE 3: 8.5 ID UNTHREADED
WEIGHT: 7.86 LBS / 3.57 KG

If you are unsure, please provide your engine serial number before purchase.
Replaces Mercury 50-804312T1 50-8M0065220
Replaces Yamaha Starter Motor Parts Number#: 67F-81800-00 67F-81800-01 67F-81800-02 67F-81800-03 67F-81800-04
Replaces Hitachi S114-828B
Replaces ARCO Part #3430
Replaces Sierra 18-6425

Application:
This 804312T1 STARTER MOTOR ASSEMBLY fits Mercury the following models and components:
75HP 0G960500 THRU 0T800999 - USA - Cat.# 90-80485100 - BODENSEE STARTER MOTOR
90HP 0G960500 THRU 0T800999 - USA - Cat.# 90-80485100 STARTER MOTOR
75HP 0T801000 THRU 1B226999 - USA - Cat.# 90-804851004 - BODENSEE STARTER MOTOR
75HP 0T801000 THRU 1B226999 - USA - Cat.# 90-804851004 STARTER MOTOR
90HP 0T801000 THRU 1B226999 - USA - Cat.# 90-804851004 STARTER MOTOR
75HP 0G960500 THRU 0T800999 - USA - Cat.# 90-80485100 STARTER MOTOR

This 8M0065220 STARTER ASSY fits Mercury the following models and components:
2005 75HP 1F75412DN STARTER MOTOR
2000 90HP 1F90412WN STARTER MOTOR
2002 90HP 1F90412ZD STARTER MOTOR
2002 75HP 1F75412ZR STARTER MOTOR
2003 90HP 1F904123N STARTER MOTOR
2004 75HP 1B75412CF STARTER MOTOR
2003 90HP 7F90412MD STARTER MOTOR
2004 90HP 7F90412RD STARTER MOTOR
2001 75HP 7F75412KD STARTER MOTOR
2003 75HP 1F754123D STARTER MOTOR
2005 90HP 1F90412D4 STARTER MOTOR
2005 90HP 1F90412DY STARTER MOTOR
2000 90HP 7F90412JY STARTER MOTOR
2003 90HP 7F904123D STARTER MOTOR
2001 75HP 7F75412KR STARTER MOTOR
2001 90HP 7F90412KD STARTER MOTOR
2004 90HP 1F90422CE STARTER MOTOR
2004 90HP 1F90422CY STARTER MOTOR
2004 90HP 1F90412CC STARTER MOTOR
2005 75HP 1B75412DF STARTER MOTOR
2005 75HP 1F75412D3 STARTER MOTOR
2005 90HP 1F90412DN STARTER MOTOR
2005 90HP 1F90422D4 STARTER MOTOR
2000 75HP 7F75412JR STARTER MOTOR
2001 90HP 7F90412KR STARTER MOTOR
2000 90HP 7F90411JD STARTER MOTOR
2004 90HP 1F90412CD STARTER MOTOR
2005 75HP 1F75412DD STARTER MOTOR
2005 90HP 1F90412D3 STARTER MOTOR
2005 90HP 1F90412DX STARTER MOTOR
2005 90HP 7F90412TD STARTER MOTOR
2003 75HP 1B754123F STARTER MOTOR
2003 90HP 1F90412AD STARTER MOTOR
2002 75HP 1F75412ZD STARTER MOTOR
2000 90HP 1F90411WD STARTER MOTOR
2005 75HP 7F75412TD STARTER MOTOR
2000 90HP 7F90412JR STARTER MOTOR
2001 90HP 7F90422YY STARTER MOTOR
2000 75HP 7F75411JD STARTER MOTOR
2002 90HP 7F90412LR STARTER MOTOR
2001 75HP 1F75412YR STARTER MOTOR
2002 90HP 1F90422ZY STARTER MOTOR
2003 90HP 1F90412AN STARTER MOTOR
2003 75HP 1F75412AD STARTER MOTOR
2001 90HP 1F90422YY STARTER MOTOR
2000 75HP 1F75412WN STARTER MOTOR
2002 90HP 7F90412LD STARTER MOTOR
2003 75HP 7F754123D STARTER MOTOR
2003 90HP 1F90412AC STARTER MOTOR
2002 75HP 1B75412ZF STARTER MOTOR
2003 90HP 1F904223Y STARTER MOTOR
2003 75HP 1F754123F STARTER MOTOR
2000 90HP 1F90412WR STARTER MOTOR
2000 75HP 1F75411WD STARTER MOTOR
2004 75HP 1F75412CN STARTER MOTOR
2004 75HP 7F75412RD STARTER MOTOR
2005 90HP 1F90412DD STARTER MOTOR
2005 90HP 1F90412DC STARTER MOTOR
2004 90HP 1F90412CY STARTER MOTOR
2001 90HP 1F90412YN STARTER MOTOR
2001 75HP 1F75412YD STARTER MOTOR
2002 90HP 1F90412ZN STARTER MOTOR
2002 90HP 7F90422LY STARTER MOTOR
2003 90HP 1F904123D STARTER MOTOR
2001 90HP 1F90412YD STARTER MOTOR
2000 90HP 1F90412WD STARTER MOTOR
2002 75HP 1F75412ZN STARTER MOTOR
2003 75HP 1B75412AF STARTER MOTOR
2000 75HP 7F75412JD STARTER MOTOR
2003 90HP 1F90422AY STARTER MOTOR
2002 90HP 1F90412ZR STARTER MOTOR
2000 75HP 1F75412WD STARTER MOTOR
2000 90HP 1F90412WY STARTER MOTOR
2003 75HP 1F754123N STARTER MOTOR
2001 90HP 1F90412YR STARTER MOTOR
2001 75HP 1F75412YN STARTER MOTOR
2002 75HP 7F75412LD STARTER MOTOR
2001 90HP 7F90412KE STARTER MOTOR
2000 75HP 1F75412WR STARTER MOTOR
2002 75HP 7F75412LR STARTER MOTOR
2003 90HP 7F90422MY STARTER MOTOR
2001 75HP 1B75412YF STARTER MOTOR
2001 90HP 1F90412YE STARTER MOTOR
2003 90HP 1F90412AY STARTER MOTOR
2003 75HP 1F75412AN STARTER MOTOR
2000 90HP 7F90412JD STARTER MOTOR
2001 90HP 7F90422KY STARTER MOTOR
2004 75HP 1F75412CD STARTER MOTOR
2004 90HP 1F90412CN STARTER MOTOR
2004 90HP 1F90412CE STARTER MOTOR
......
