Description:

Engine Position: Outboard

Replaces Part Number: 47-888689 9-45609

Engine: 225HP

If you are unsure, please provide your engine serial number.

Can't just rely on horsepower to judge, please check the dimension with your old one carefully, if you still can't confirm that, please consult us.

Application:

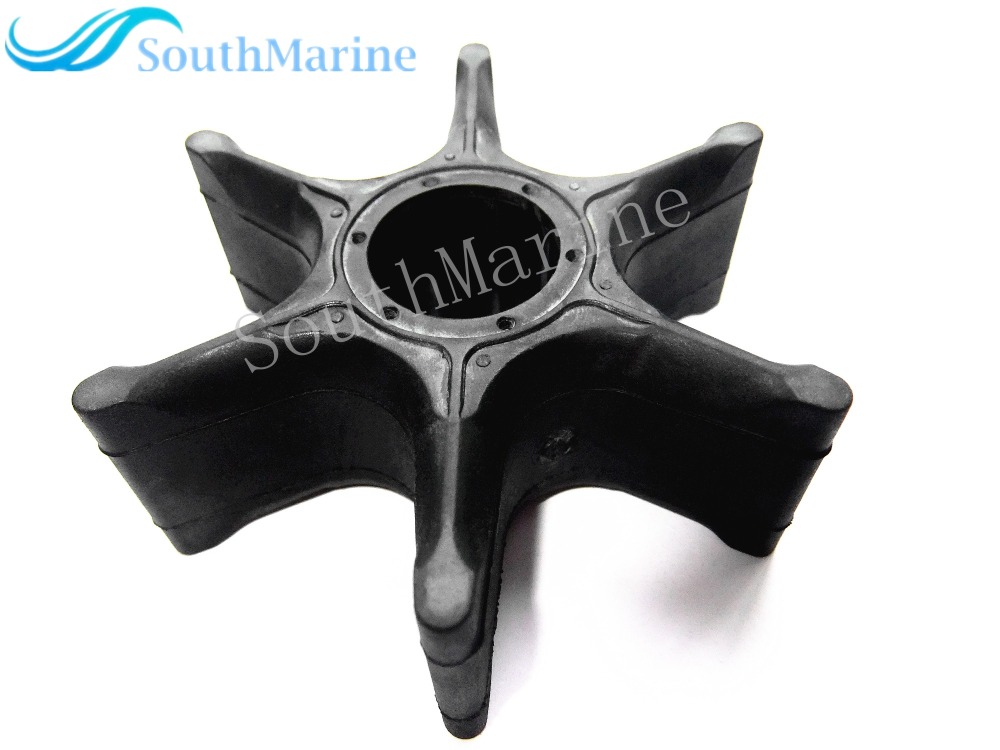

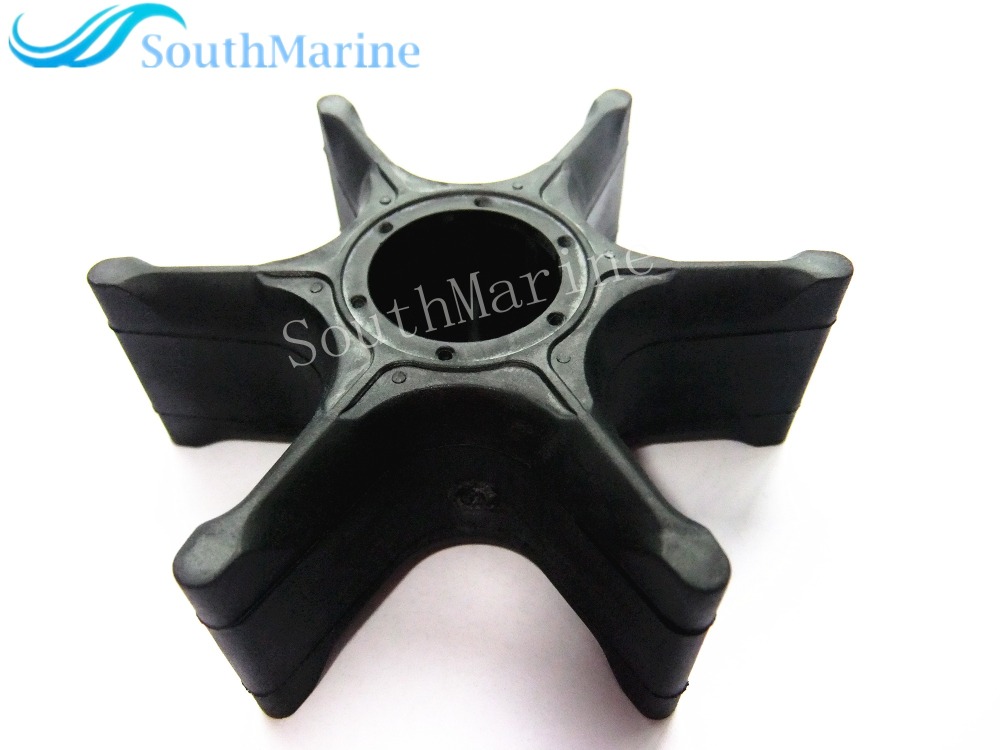

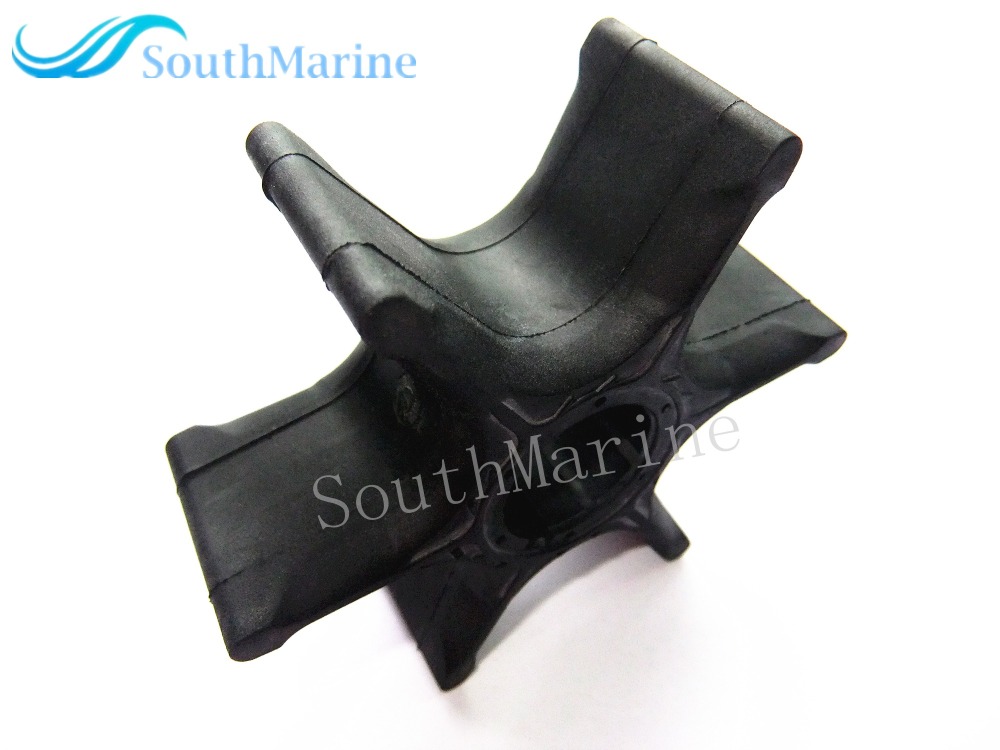

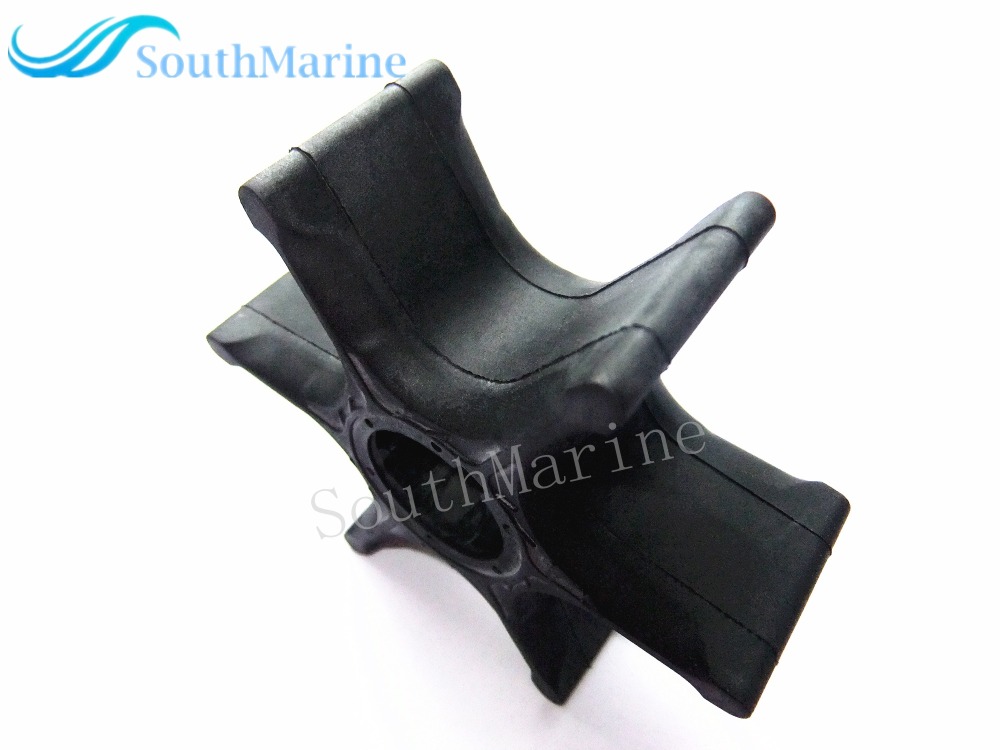

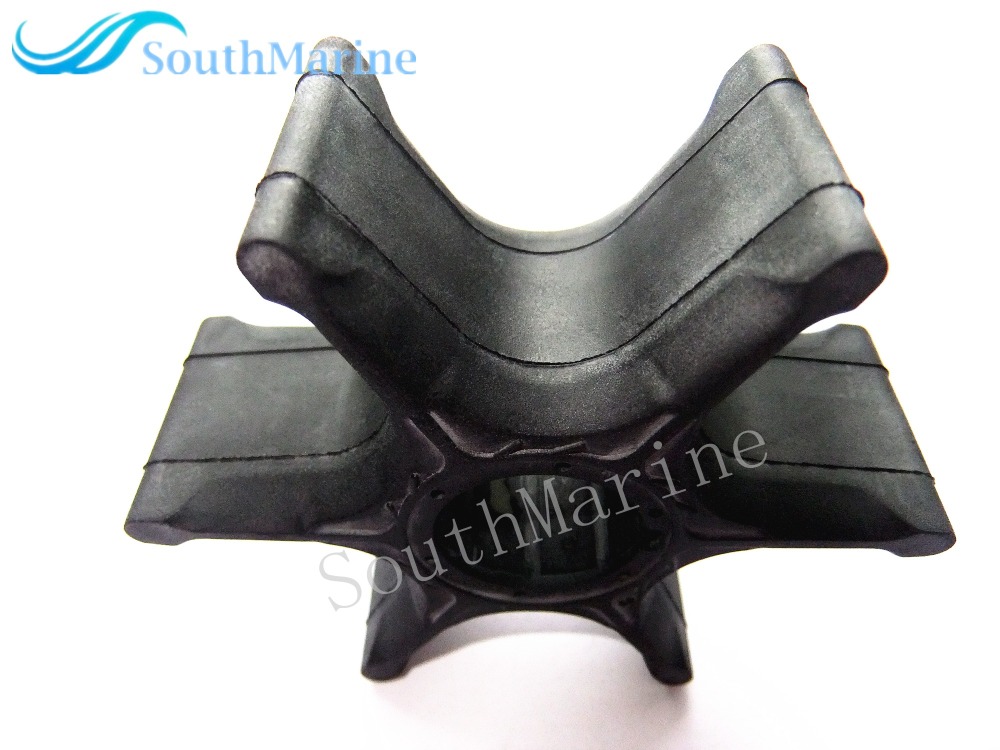

This 888689 IMPELLER fits Mercury the following models and components:

225HP 0T653945 & Up - USA - Cat.# 90-88876503 Gear Housing, Driveshaft - Standard/Counter Rotation

2003 225HP 1225F33AK Gear Housing, Driveshaft - Standard/Counter Rotation

2003 225HP 1225F23AK Gear Housing, Driveshaft - Standard/Counter Rotation

2003 225HP 1225F24AK Gear Housing, Driveshaft - Standard/Counter Rotation

2005 225HP 1225F33DK Gear Housing, Driveshaft - Standard/Counter Rotation

2005 225HP 1225F23DK Gear Housing, Driveshaft - Standard/Counter Rotation

2005 225HP 1225F24DK Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F244K Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F24CK Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F334K Gear Housing, Driveshaft - Standard/Counter Rotation

2006 225HP 1225F23FK Gear Housing, Driveshaft - Standard/Counter Rotation

2006 225HP 1225F34FK Gear Housing, Driveshaft - Standard/Counter Rotation

2006 225HP 1225F33FK Gear Housing, Driveshaft - Standard/Counter Rotation

2006 225HP 1225F24FK Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F234K Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F23CE Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F23CK Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F33CK Gear Housing, Driveshaft - Standard/Counter Rotation

2004 225HP 1225F94CK Gear Housing,

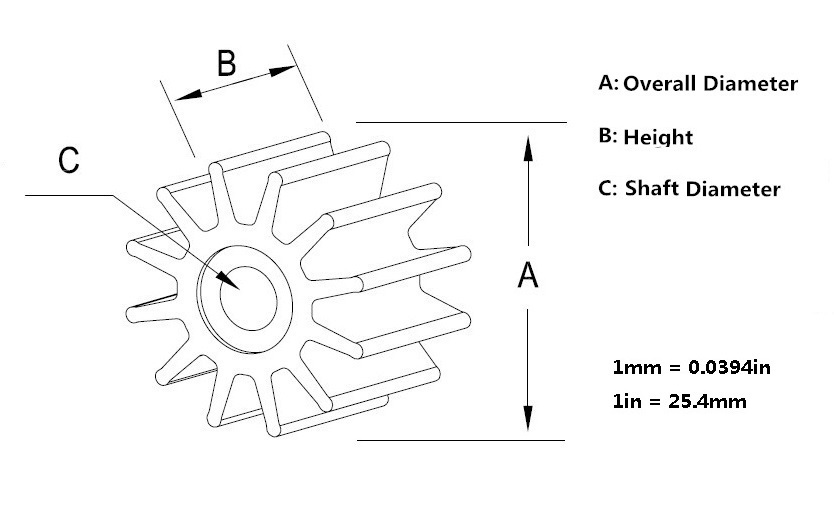

Dimension

Number of Blades: 6

Height:30.65mm

External Impeller Overall Diameter: 88.65mm

Internal Shaft Insert Diameter : 22.71mm

Net Weight: 74g
