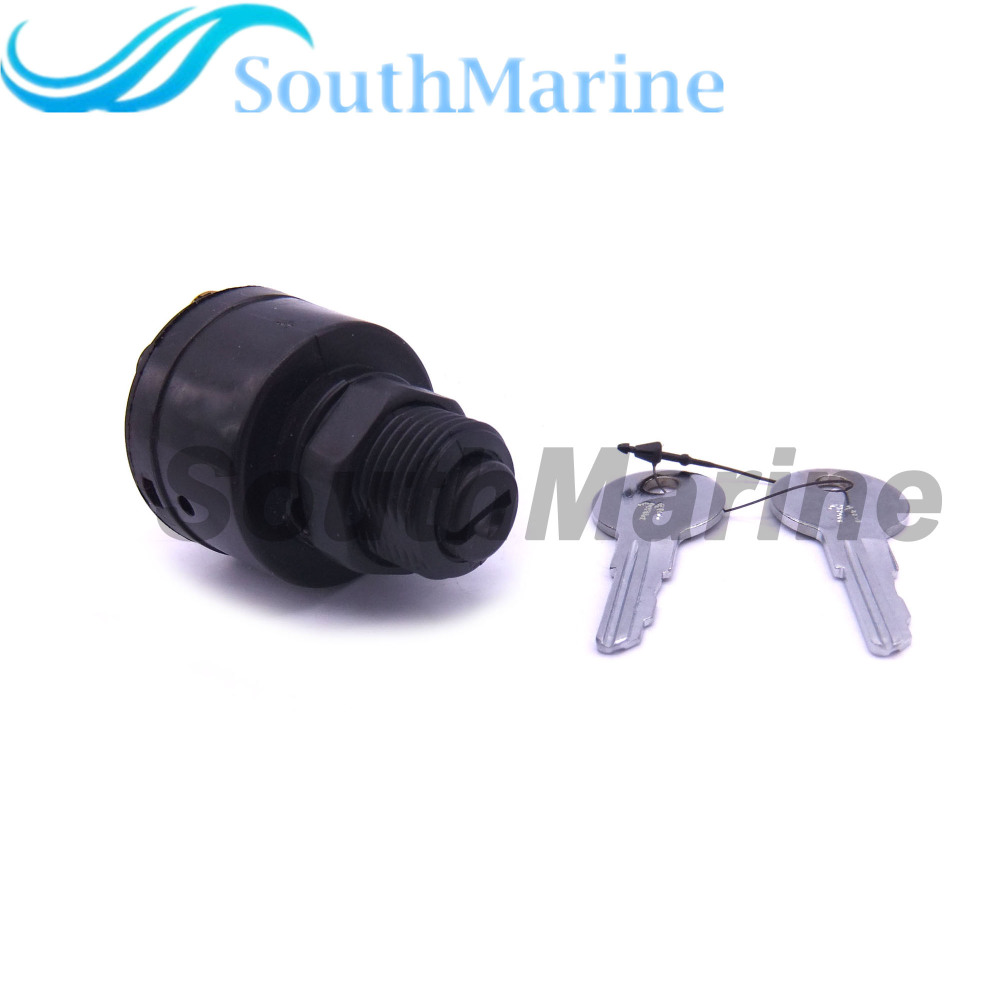

Boat Engine 87-88107 87-88107A5 Ignition Switch Push to Choke for Mercury Marine Outboard Motor

Key Features:

Push to choke

Maximum corrosion protection - eliminates oxidation

Inner seal between cylinder lock and contact plate

Non-conductive housing eliminates potential shorts

Replace OEM parts number: 87-88107 87-88107A5

Additional Details:

Back Up Nut: Brass

Face Nut: Hex Black Plastic

Hole Size: 7/8"

Length: Short: 5/8" maximum panel thickness

Material: Marine grade glass-filled Polyester

Rated Choke: 7 Amp @ 12v DC

Rated Ignition: 15 Amp @ 12v DC

Rated Solenoid: 30 Amp @ 12v DC

Switch Positions: Off - Run - Start

Type: 3 Position Magneto

This SWITCH KIT-IGN fits Mercury the following models and components:

3.0 Liter 1E052967 & Up - Cat.# 90-8M0119863 Accessories

250HP 0T997974 THRU 1E000796 - USA - Cat.# 90-889352005 - XS Accessories, 250HP 0T818043 THRU 0T997973 - USA - Cat.# 90-889352004 - XS Accessories

250HP 1E000797 THRU 1E002341 - USA - Cat.# 90-889352006 - XS Accessories, 3.0 Liter 1E003046 & Up - Cat.# 90-896291008 Accessories

250HP 0T651945 THRU 0T818042 - USA - Cat.# 90-889352003 - XS Accessories, Controls & Gauges Electrical Electric Start Kits Electric Start Conversion Kit(50-44369A3)

225HP 0G857000 THRU 0T429939 - USA - Cat.# 90-803934 - PRO MAX SUPER MAG, 2.5 Liter 0G610239 THRU 0G856999 - Cat.# 90-81150598 Key Switch

200HP 0G610239 THRU 0G856999 - Cat.# 90-81150598, 200HP 0G857000 THRU 0G858150 - Belgium - Cat.# 90-803922 - PRO MAX, SUPER MAG Key Switch

150 to 200HP 0G610050 THRU 0G856999 - Canada - Cat.# 90-80856798, 2.5 Liter 0G367000 THRU 0G610238 - MERC MAR 2.5L (EFI) Key Switch

2.5 Liter 0D935271 THRU 0G366999 - MERC MAR 2.5L (EFI), 225HP 0G610104 THRU 0G856999 - USA - Cat.# 90-80918498 - PRO MAX SUPER MAG Key Switch

200HP 0G857000 THRU 0T999519 - USA - Cat.# 90-804064, Controls & Gauges Electrical Key Switches-Harnesses and Connectors Key Switch - 3 Position(88107A 5)

120XR Jet Drive 0E151580 THRU 0E288445 - USA - Cat.# 90-809809R1, 175XR2 Jet Drive Pump 0E369300 THRU 0E433153 - USA - Cat.# 90-804853R1, 250HP 0G980600 THRU 0T800999 - USA - Cat.# 90-80494300 - XB

175HP 0C239553 THRU 0D081999 - USA - V-175 (SKI) EFI Cat.#81615090, 240 EFI M2 Jet Drive Powerhead OE384500 THRU 0E406399 - USA - Cat.# 90-881303, 210 CARB M2 Jet Drive Pump 0E370718 THRU 0E426999 - USA - Cat.# 90-804944R1

2.5 Liter 0D030200 THRU 0D935270 - MERC MAR 2.5L (EFI), 120XR Jet Drive 0E145580 THRU 0E151579 - USA - Cat.# 90-809809R1, 120XR Powerhead 0E203000 THRU 0E315904 - USA - Cat.# 90-809809R1, 225HP 0T430254 THRU 0T819605 - Cat.# 90-80393402 - PROMAX

Sold by Marine Parts Manufacturer, Brand Name SouthMarine

Boat Engine 87-88107 87-88107A5 Ignition Switch Push to Choke for Mercury Marine Outboard Motor

300HP 0G610221 THRU 0T105297 - PROMAX, SUPER MAGNUM, 300HP 0T429940 THRU 0T999587 - 300X PROMAX, 60HP 0C276380 AND UP - MERC MOD-VP (EFI), Year Sea Ray 9175422UD - 1989

240 EFI M2 Jet Drive Powerhead 0E373939 THRU 0E384499 - USA - Cat.# 90-804945R1, 240 EFI M2 Jet Drive Pump 0E370718 THRU 0E379930 - USA - Cat.# 90-804945R1

210 CARB M2 Jet Drive Powerhead [0E373939 THRU 0E426999] - USA - Cat.# 90-804944R1, 2.4 Liter 0C276430 THRU 0D935270 - MERC/MAR XR2/MAGNUM, 175HP 0C100861 THRU 0C239552 - USA - V-175 (SKI) EFI Cat.#814202

200 DFI M2 Jet Drive Powerhead 0E384500 THRU 0E433351 - USA - Cat.# 90-881779, 240 EFI Jet Drive Powerhead 0E384500 THRU 0E406399 - USA - Cat.# 90-881812, 240 EFI Jet Drive Pump 0E379931 THRU 0E406399 - USA - Cat.# 90-881812

175XR2 Jet Drive Pump 0E151580 THRU 0E369299 - USA - Cat.# 90-835085R2, 210 CARB Jet Drive Powerhead 0E384500 THRU 0E433153 - USA - Cat.# 90-881770, 120XR Jet Drive 0E288446 THRU 0E344999 - USA - Cat.# 90-809809R1

120XR Powerhead 0E315905 THRU 0E341982 - USA - Cat.# 90-809809R1, 175XR2 Jet Drive Powerhead 0E151580 THRU 0E369299 - USA - Cat.# 90-835085R2, 120XR2 Powerhead 2000 0E369300 THRU 0E384499 - USA - Cat.# 90-803882R1

210 CARB Jet Drive Pump 0E379931 THRU 0E433153 - USA - Cat.# 90-881770, 200 DFI M2 Jet Drive Pump 0E379931 THRU 0E423075 - USA - Cat.# 90-881779, 120XR2 Powerhead 1999 0E345000 THRU 0E369299 - USA - Cat.# 90-803882R1

175XR2 Jet Drive Powerhead 0E369300 THRU 0E433153 - USA - Cat.# 90-804853R1, 300HP 0T235084 THRU 0T429939 - 300X PROMAX, 225HP 0D935638 THRU 0G610103 - 225 EFI PRO MAX SUPER MAG

240 EFI M2 Jet Drive Pump 0E379931 THRU 0E406399 - USA - Cat.# 90-881303, 200 DFI Jet Drive Pump 0M954922 THRU 0M964698 - USA - Cat.# 90-883495, 200 DFI Jet Drive Powerhead 0E384500 THRU 0E435741 - USA - Cat.# 90-883495

120XR Powerhead 0E141089 THRU 0E202999 - USA - Cat.# 90-809809R1, 120XR2 Jet Drive 1999 0E345000 THRU 0E369299 - Belgium - Cat.# 90-803882R1, 200 DFI Jet Drive Pump 0E379931 THRU 0E428850 - USA - Cat.# 90-883495, 120XR2 Jet Drive 2000 0E369300 THRU 0E379999 - USA - Cat.# 90-803882R1

2.4 Liter 0B290010 THRU 0C276917 - MERC MAR 2.4L (EFI), 2.4 Liter 0C175045 AND UP - MERC/MAR 2.4L (CARB) KEY SWITCH ASSEMBLY NEW DESIGN

240 EFI Jet Drive Pump 0E406400 & Up - USA - Cat.# 90-885191, 240 EFI M2 Jet Drive Pump 0E406400 & Up - USA - Cat.# 90-885191, 240 EFI M2 Jet Drive Powerhead 0E406400 & Up - USA - Cat.# 90-885191, 240 EFI Jet Drive Powerhead 0E406400 & Up - USA - Cat.# 90-885191 Key Switch Assembly(240 EFI M2 Models)

240 EFI Jet Drive Pump 0E406400 & Up - USA - Cat.# 90-885191, 240 EFI M2 Jet Drive Powerhead 0E406400 & Up - USA - Cat.# 90-885191, 240 EFI M2 Jet Drive Pump 0E406400 & Up - USA - Cat.# 90-885191, 240 EFI Jet Drive Powerhead 0E406400 & Up - USA - Cat.# 90-885191 Key Switch Assembly(240 EFI Models)

250 DFI M2 Jet Drive Pump 0E407100 & Up - USA - Cat.# 90-889510, 250 DFI Jet Drive Powerhead 0E407100 & Up - USA - Cat.# 90-889510, 250 DFI Jet Drive Pump 0E407100 & Up - USA - Cat.# 90-889510, 250 DFI M2 Jet Drive Powerhead 0E407100 & Up - USA - Cat.# 90-889510 Key Switch Assembly(250 DFI M2 Models)

250 DFI M2 Jet Drive Powerhead 0E407100 & Up - USA - Cat.# 90-889510, 250 DFI M2 Jet Drive Pump 0E407100 & Up - USA - Cat.# 90-889510, 250 DFI Jet Drive Pump 0E407100 & Up - USA - Cat.# 90-889510, 250 DFI Jet Drive Powerhead 0E407100 & Up - USA - Cat.# 90-889510 Key Switch Assembly(250 DFI Models)

200HP 0T235000 THRU 0T818180 - USA - Cat.# 90-88184401 - XS 2.5L, 200HP 0T818181 THRU 1E000796 - USA - Cat.# 90-881844004 - XS 2.5L KEY SWITCH/INSTRUMENTATION/ACCESSORIES

55HP 0T980000 & Up - USA - Cat.# 90-803022001 - 3CYL, 60HP 0T980000 & Up - USA - Cat.# 90-803022001 - 3CYL, 60HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803022 - BIGFOOT 3CYL Steerig Handle Kit

60HP 0P325500 & Up - Belgium - Cat.# 90-803022001 - 3CYL, 45HP 0P017000 THRU 0P094499 - Belgium - Cat.# 90-803022 - JET, 40HP 0P325500 & Up - Belgium - Cat.# 90-803022001 - 40 JET, 55HP 0P325500 & Up - Belgium - Cat.# 90-803022001 - 3CYL Steerig Handle Kit

55HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803022 - 3CYL, 55HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803022 - 3CYL, 40HP 0T178500 THRU 0T979999 - USA - Cat.# 90-803022 - 40 JET, 60HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803022 - BIGFOOT 3CYL Steerig Handle Kit

45HP 0G760300 THRU 0T129554 - USA - Cat.# 90-803022 - JET, 40HP 0T980000 & Up - USA - Cat.# 90-803022001 - 40 JET, 40HP 0P094500 THRU 0P325499 - Belgium - Cat.# 90-803022 - 40 JET Steerig Handle Kit

125HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803168 - 4CYL, 115HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-1779394 - 4CYL, 90HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803147 - 3CYL, 80HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803168 - JET, 75HP 0D283222 THRU 0 0G760299 - USA - Cat.# 90-81589894 - 3CYL, 65HP 0D283222 THRU 0G760299 - USA - Cat.# 90-81589894

65HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-81589894, 125HP 0P325500 & Up - Belgium - Cat.# 90-803168001 - 4CYL STEERING HANDLE COMPONENTS

75HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803147 - 3CYL, 65HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803147, 65HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803147

125HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803168 - 4CYL, 115HP 0D283222 THRU 0G760299 - USA - Cat.# 90-1779394 - 4CYL

100HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-1779394 - 4CYL, 100HP 0P017000 THRU 0P058999 - Belgium - Cat.# 90-803168 - 4CYL

125HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-1779394 - 4CYL

125HP 0T980000 THRU 0T999999 - USA - Cat.# 90-803168001 - 4CYL, 80HP 0T980000 THRU 0T999999 - USA - Cat.# 90-803168001 - JET

80HP 1B000001 & Up - USA - Cat.# 90-803168001 - JET, 90HP 1B000001 & Up - USA - Cat.# 90-803147001 - 3CYL

90HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-81589894, 80HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-1779394 - JET

90HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803147 - 3CYL, 65HP 0T980000 THRU 0T999999 - USA - Cat.# 90-803147001 - 3CYL

65HP 1B000001 & Up - USA - Cat.# 90-803147001 - 3CYL, 75HP 0T980000 THRU 0T999999 - USA - Cat.# 90-803147001 - 3CYL

100HP 0D283222 THRU 0G760299 - USA - Cat.# 90-1779394 - 4CYL, 90HP 9589039 THRU 9793576 - Belgium - Cat.# 90-81589890 - 3CYL

90HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-81589894 - 3CYL, 90HP 0P325500 & Up - Belgium - Cat.# 90-803147001 - 3CYL

90HP 9483121 THRU 9506480 - Belgium - Cat.# 90-13725 - 3CYL, 75HP 1B000000 & Up - USA - Cat.# 90-803147001 - 3CYL

75HP 0P325500 & Up - Belgium - Cat.# 90-803147001 - 3CYL , 90HP 0T980000 THRU 0T999999 - USA - Cat.# 90-803147001 - 3CYL

75HP 9793577 THRU 0P016999 - Belgium - Cat.# 90-81589894 - 3CYL, 90HP 9506481 THRU 9589038 - Belgium - Cat.# 90-18520 - 3CYL

125HP 0D283222 THRU 0G760299 - USA - Cat.# 90-1779394 - 4CYL, 80HP 0D283222 THRU 0G760299 - USA - Cat.# 90-1779394 - JET

80HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803168 - JET, 115HP 0P325500 & Up - Belgium - Cat.# 90-803168001 - 4CYL

115HP 0T980000 THRU 0T999999 - USA - Cat.# 90-803168001 - 4CYL, 115HP 1B000001 & Up - USA - Cat.# 90-803168001 - 4CYL

115HP 0G760300 THRU 0T979999 - USA - Cat.# 90-803168 - 4CYL, 90HP 0D283222 THRU 0G760299 - USA - Cat.# 90-81589894 - 3CYL

115HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803168 - 4CYL, 100HP 0G760300 THRU 0G965520 - USA - Cat.# 90-803168 - 4CYL

125HP 1B000001 & Up - USA - Cat.# 90-803168001 - 4CYL , 75HP 0P017000 THRU 0P325499 - Belgium - Cat.# 90-803147 - 3CYL STEERING HANDLE COMPONENTS

60HP 0G590000 THRU 0G760299 - USA - Cat.# 90-85207297 - BIGFOOT 3CYL, 45HP 9973100 THRU 0P016999 - Belgium - Cat.# 90-85207297 - JET, 45HP 0G590000 THRU 0G760299 - USA - Cat.# 90-85207297 - JET

55HP 0G590000 THRU 0G760299 - USA - Cat.# 90-85207297 - 3CYL , 55HP 9973100 THRU 0P016999 - Belgium - Cat.# 90-85207297 - 3CYL, 60HP 9973100 THRU 0P016999 - Belgium - Cat.# 90-85207297 - BIGFOOT 3CYL Steering Handle Kit

75HP 0G960500 THRU 0T800999 - USA - Cat.# 90-80485100 - BODENSEE, 90HP 0G960500 THRU 0T800999 - USA - Cat.# 90-80485100

75HP 1B417702 THRU 1B736885 - USA - Cat.# 90-891837007, 80HP 1B586067 THRU 1B736885 - USA - Cat.# 90-891837007

115HP 0T178500 THRU 0T800999 - USA - Cat.# 90-88183801 - EFI, 75HP 0G960500 THRU 0T800999 - USA - Cat.# 90-80485100

115HP 1B227000 THRU 1B366822 - USA - Cat.# 90-881838006 - EFI, 100HP 1B227000 THRU 1B366822 - USA - Cat.# 90-898112006

115HP 1B417702 THRU 1B736885 - USA - Cat.# 90-891837007 - 3CYL 1.5L, 75HP 0T801000 THRU 1B226999 - USA - Cat.# 90-804851004

90HP 0T801000 THRU 1B226999 - USA - Cat.# 90-804851004, 75HP 0T801000 THRU 1B226999 - USA - Cat.# 90-804851004 - BODENSEE

90HP 1B172291 THRU 1B366822 - USA - Cat.# 90-898112006 - EFI, 75HP 1B172291 THRU 1B366822 - USA - Cat.# 90-898112006 - EFI

80HP 1B227000 THRU 1B366822 - USA - Cat.# 90-898112006 - EFI, 90HP 1B417702 THRU 1B736885 - USA - Cat.# 90-891837007, 115HP 0T801000 THRU 1B226999 - USA - Cat.# 90-881838004 Steering Handle Kit Components

80HP 1B366823 THRU 2B094995 - USA - Cat.# 90-898101362 - EFI, 115HP 1B366823 THRU 2B094995 - USA - Cat.# 90-898101362 - EFI

75HP 1B366823 THRU 2B094995 - USA - Cat.# 90-898101362 - EFI, 80HP 0P459572 THRU 2B094995 - Belgium - Cat.# 90-898101362 - EFI

90HP 1B366823 THRU 2B094995 - USA - Cat.# 90-898101362 - EFI, 100HP 1B366823 THRU 2B094995 - USA - Cat.# 90-898101362, 100HP 0P459572 THRU 2B094995 - Belgium - Cat.# 90-898101362 Steering Handle Kit Components, 816366A52

80HP 1B586067 THRU 1B736885 - USA - Cat.# 90-891837007, 90HP 1B417702 THRU 1B736885 - USA - Cat.# 90-891837007

75HP 1B417702 THRU 1B736885 - USA - Cat.# 90-891837007, 115HP 1B417702 THRU 1B736885 - USA - Cat.# 90-891837007 - 3CYL 1.5L Steering Handle Kit Components, 896648A02

125HP 1B736885 & Up - USA - Cat.# 90-891837008, 75HP 1B736885 & Up - USA - Cat.# 90-891837008

80HP 1B736885 & Up - USA - Cat.# 90-891837008, 90HP 1B736885 & Up - USA - Cat.# 90-891837008

115HP 1B736885 & Up - USA - Cat.# 90-891837008 - 3CYL 1.5L, 115HP 1B751825 & Up - USA - Cat.# 90-898103232 - Pro XS Steering Handle Kit Components, 896648A09

2.4 Liter 0B290000 AND UP - MERC MOD-VP,3.4 Liter 82H1008 THRU 85E1092 - MERC 3.4 (EFI),2.4 Liter 0A168043 AND BELOW - MERC MAR 2.4L (EFI) TRIM HARNESS ASSEMBLY

3.4 Liter 0A953707 THRU 0A953736 - MERC 3.4 (EFI) ,2.4 Liter 0A168044 THRU 0B290009 - MERC MAR 2.4L (EFI) TRIM HARNESS ASSEMBLY

2.4 Liter 0B290010 THRU 0C276917 - MERC MAR 2.4L (EFI), 2.4 Liter 0C175045 AND UP - MERC/MAR 2.4L (CARB) TRIM HARNESS ASSEMBLY OLD DESIGN

2003 1928494AH, 2003 1928493AH, 2003 1928484AH, 2003 1925371AH, 2003 1925356AH, 2003 1925355AH

2004 192847BCH, 2004 192847FCH, 2004 192847DCH, 2005 192847GDH, 2005 192847BDH, 2003 19284B3AH, 2003 19284B0AH Accessories

......
