Description:
Engine Position: Outboard 25HP 30HP 40HP 45HP 50HP
Replaces Part Number: 821354A1 821354A2 3219 18-4531

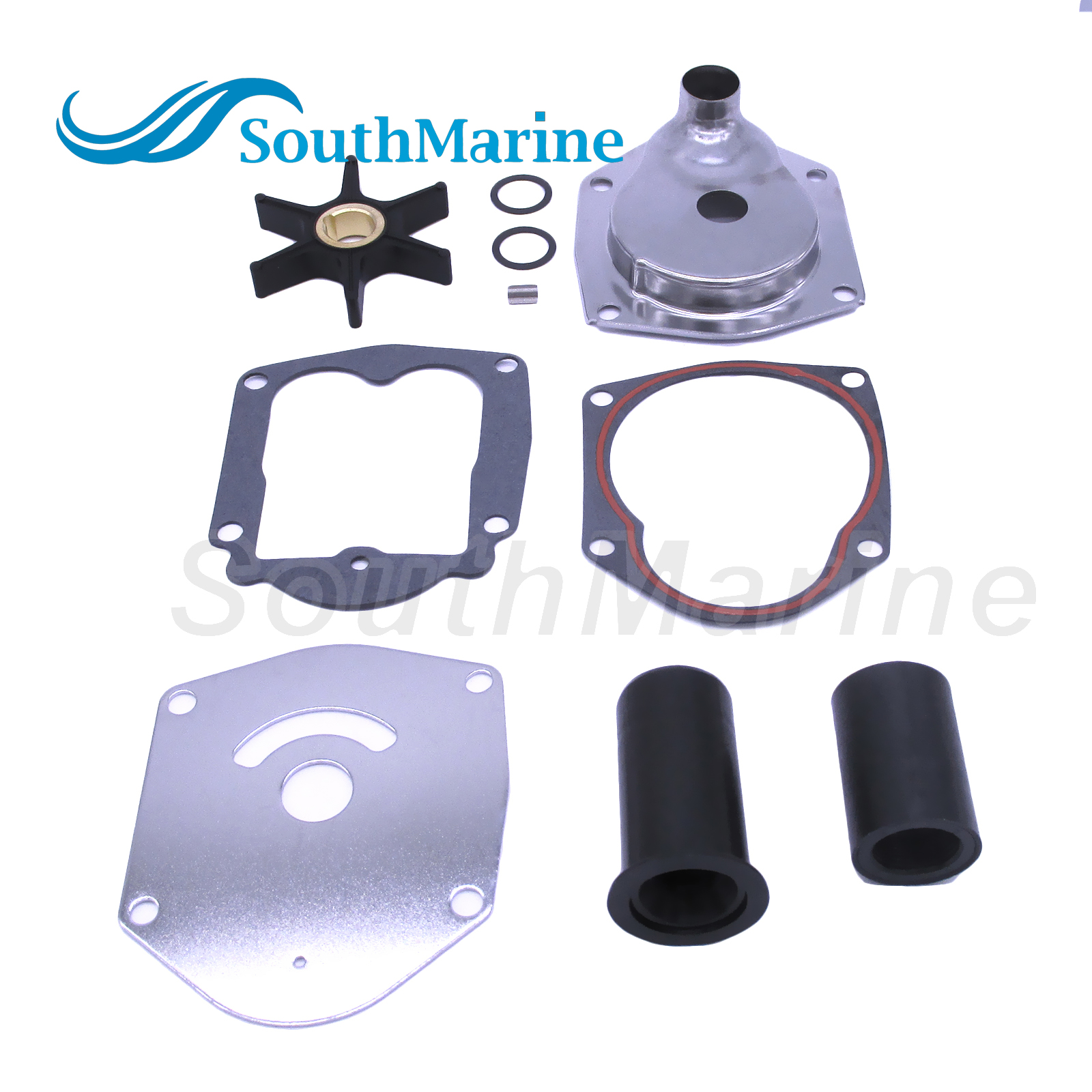

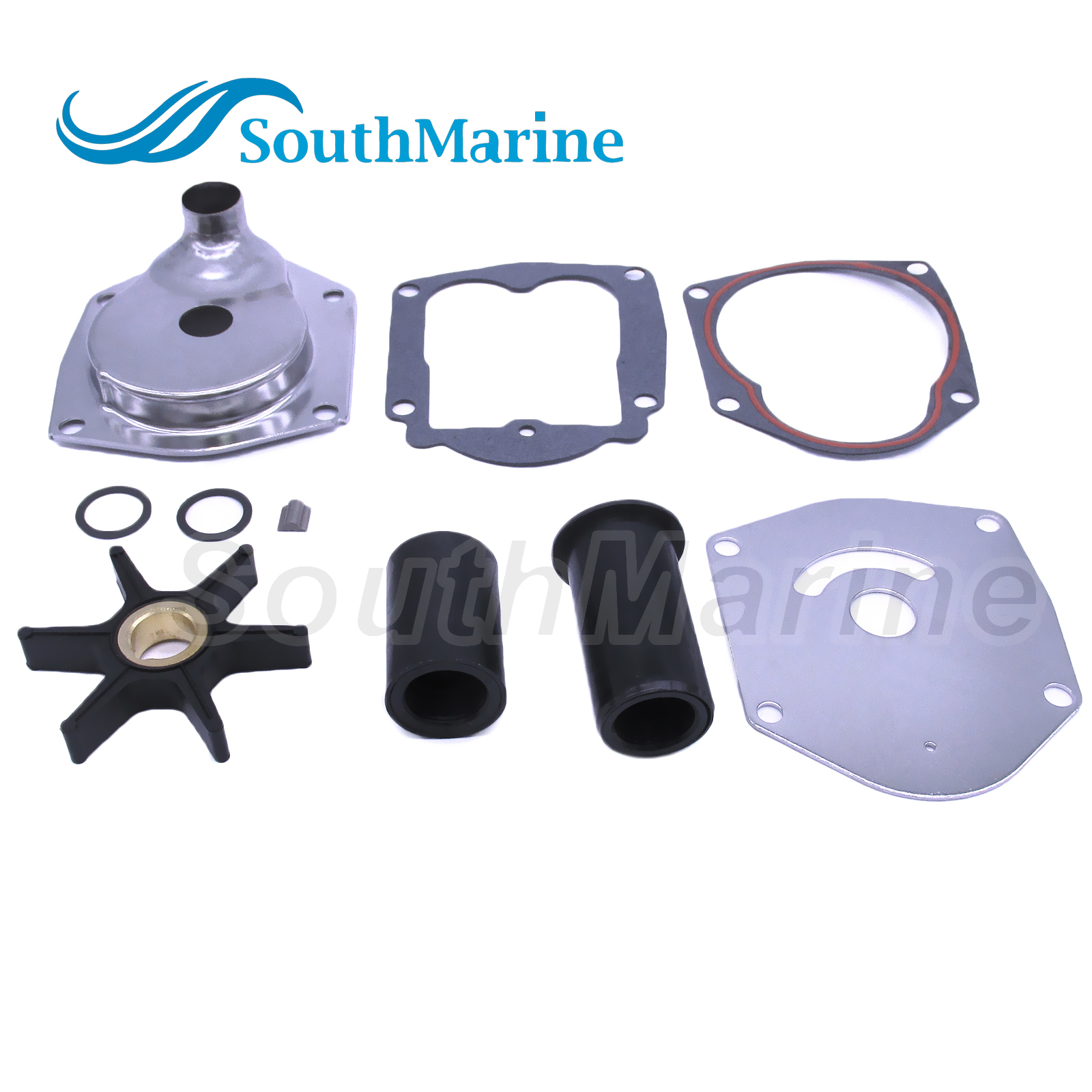

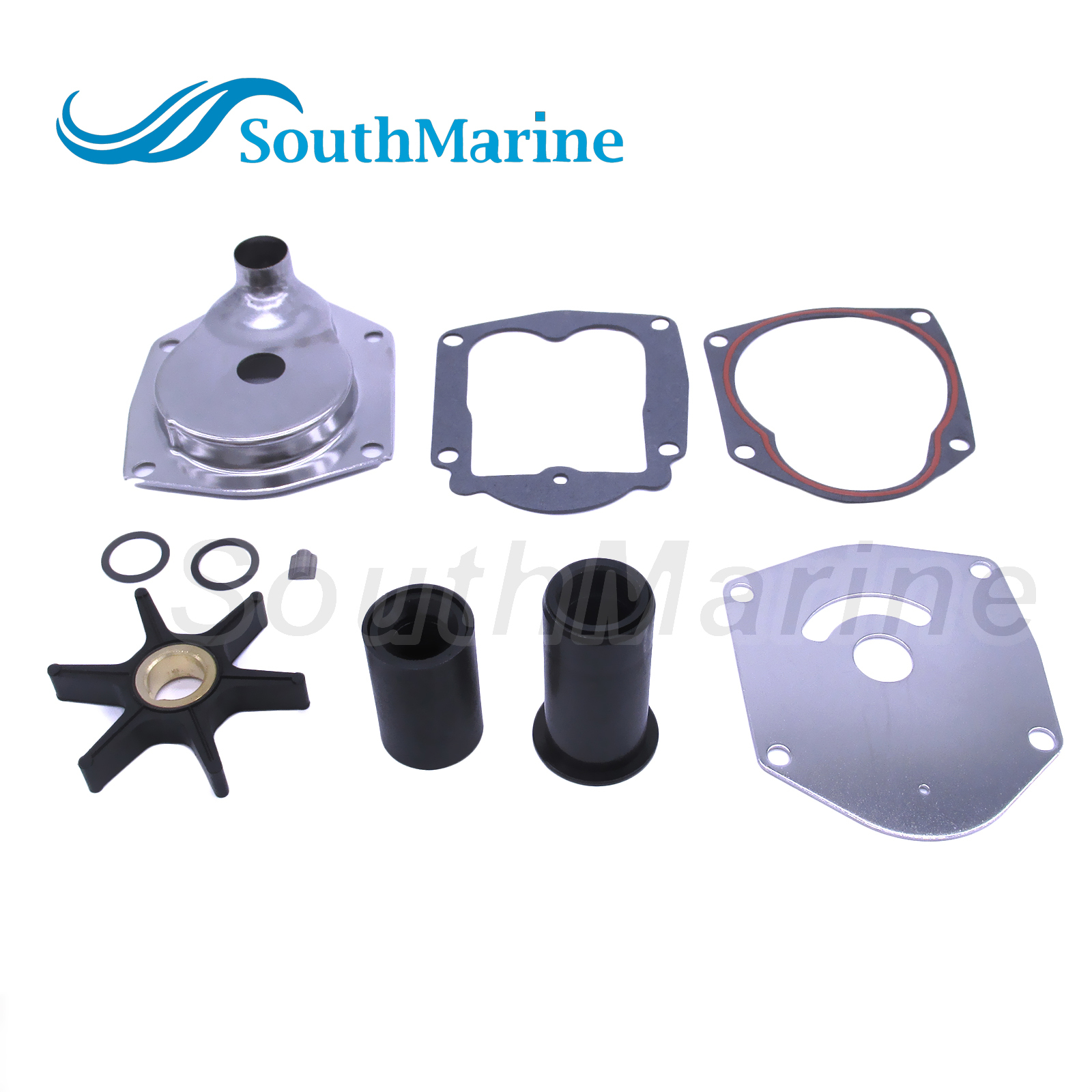

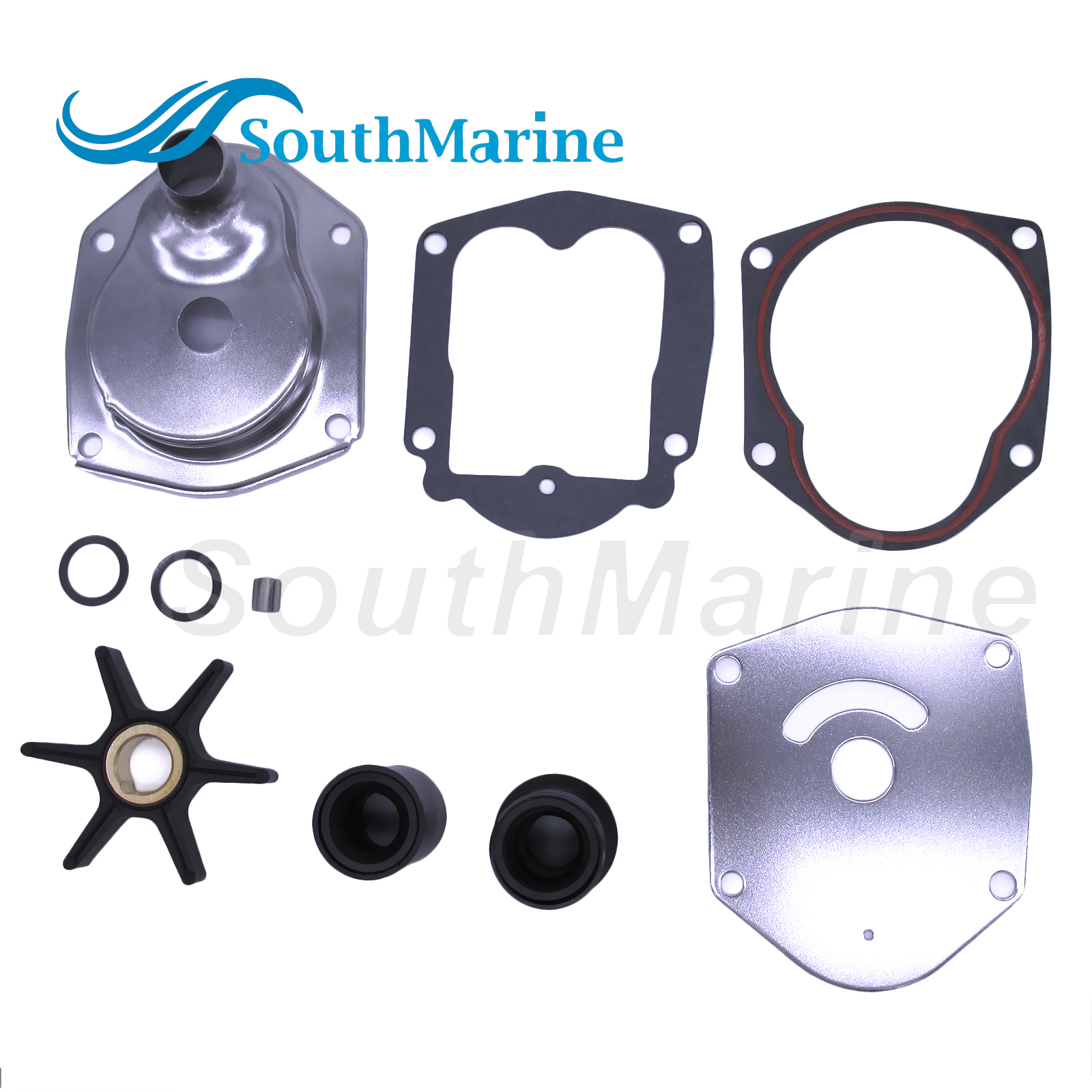

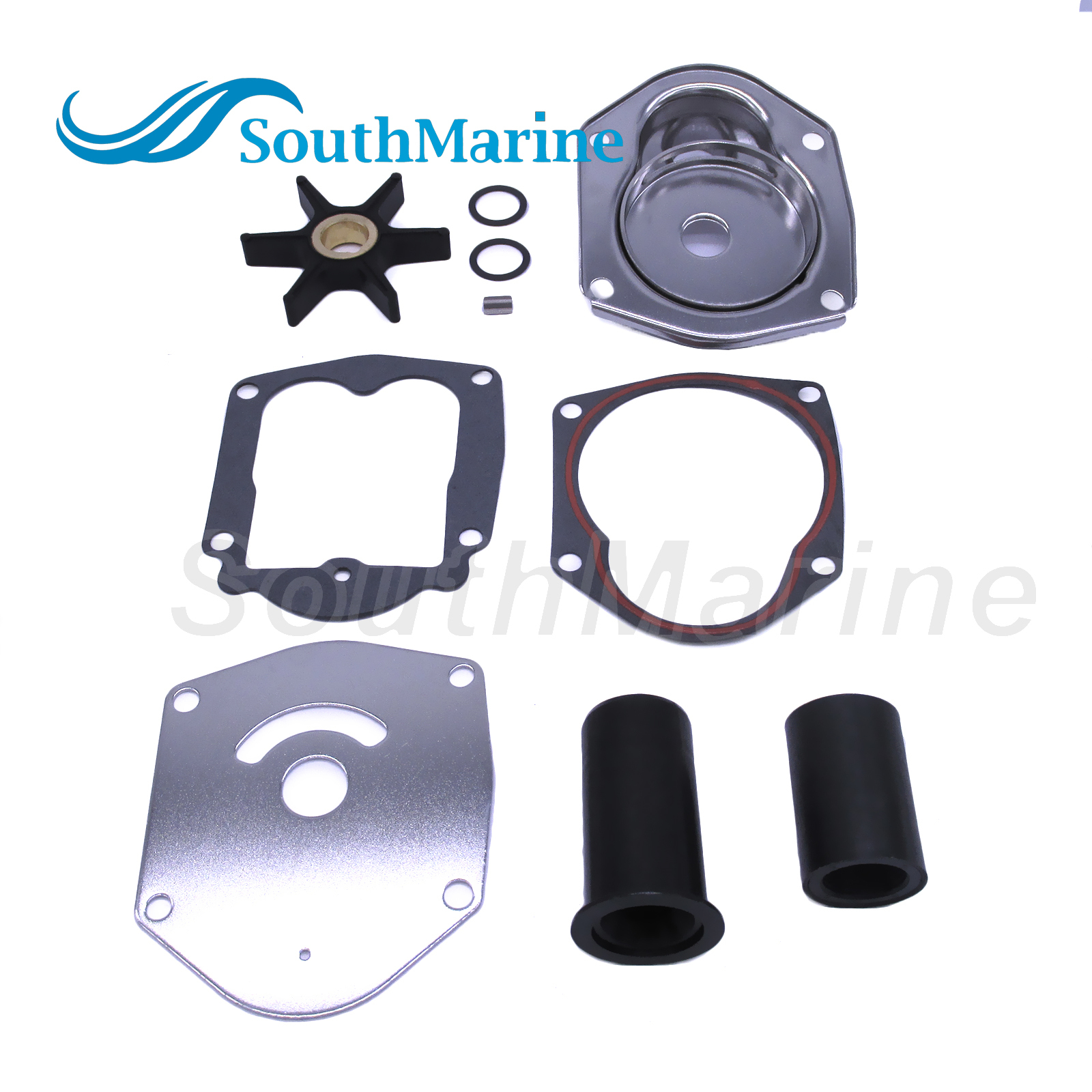

Contains:
1 X Neoprene Impeller 89640 47-85089-10 47-85089-3
1 X HOUSING ASSEMBLY Water Pump Upper 821351A3
2 X Water Tube Seal 85180 43023/ 85181 823547-1
2 X Washer 31175 12-86645-1
2 X Gasket 37490 27-822189 /37700 27-822217
1 X Wear Plate 12505 821354-2
1 X Drive Key
If you are unsure, please provide your engine serial number.

Application:
This 821354A2 WATER PUMP KIT 821354A2 fits Mercury the following models and components:
50HP 0G590000 THRU 0G760299 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
50HP 0G760300 THRU 0T979999 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
50HP 0T980000 THRU 0T999999 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
50HP 9973100 THRU 0P016999 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
50HP 1B000001 & Up Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
50HP 0P325500 & Up Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
40HP 0T980000 THRU 1B209735 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
40HP 9973100 THRU 0P016999 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
30HP JET 0P017000 THRU 0P153499 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
30HP JET 0G760300 THRU 0T408999 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
30HP JET 9973100 THRU 0P016999 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
30HP JET 0G590000 THRU 0G760299 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
50HP 0P017000 THRU 0P325499 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
40HP 0G590000 THRU 0G760299 Gear Housing (Driveshaft)(1.83:1 Gear Ratio)
40HP 0E288000 THRU 0E344999 1998 Gear Housing Assembly (Driveshaft)
50HP 0E288000 THRU 0E344999 1998 Gear Housing Assembly (Driveshaft)
50HP 0E345000 THRU 0E369299 1999 Gear Housing Assembly (Driveshaft)
40HP 0E345000 THRU 0E369299 1999 Gear Housing Assembly (Driveshaft)
25HP 0P017000 THRU 0P153499 Gear Housing(Driveshaft)(2.41:1 Gear Ratio)
25HP 0G760300 THRU 0T408999 Gear Housing(Driveshaft)(2.41:1 Gear Ratio)
25HP 0G590000 THRU 0G760299 Gear Housing(Driveshaft)(2.41:1 Gear Ratio)
25HP 9973100 THRU 0P016999 Gear Housing(Driveshaft)(2.41:1 Gear Ratio)
30HP 0G760300 THRU 0T408999 Gear Housing(Driveshaft)(2:1 Gear Ratio)
30HP 0P017000 THRU 0P153499 Gear Housing(Driveshaft)(2:1 Gear Ratio)
40HP 0P017000 THRU 0P153499 Gear Housing(Driveshaft)(2:1 Gear Ratio)
40HP 0G760300 THRU 0T408999 Gear Housing(Driveshaft)(2:1 Gear Ratio)
50HP Big Foot 0G760300 THRU 0T178499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
45HP 0P017000 THRU 0P094499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
40HP 0G760300 THRU 0T178499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
45HP 0G760300 THRU 0T178499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
50HP 0P017000 THRU 0P094499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
50HP Big Foot 0P017000 THRU 0P094499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
50HP 0G760300 THRU 0T178499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
40HP 0P017000 THRU 0P094499 Gear Housing, Driveshaft - 1.83:1 Gear Ratio - Non Bigfoot
40HP 0T980000 THRU 0T999999 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
30HP 0P017000 THRU 0P325499 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
40HP 0G055314 THRU 0G760299 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
30HP 0G760300 THRU 0T979999 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
40HP 0P325500 & Up Gear Housing, Driveshaft - 2.00:1 Gear Ratio
30HP 1B000001 & Up Gear Housing, Driveshaft - 2.00:1 Gear Ratio
30HP 0P325500 & Up Gear Housing, Driveshaft - 2.00:1 Gear Ratio
30HP 9854537 THRU 0P016999 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
40HP 9854537 THRU 0P016999 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
40HP 0G760300 THRU 0T979999 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
30HP 0G055314 THRU 0G760299 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
30HP 0T980000 THRU 0T999999 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
40HP 0P017000 THRU 0P325499 Gear Housing, Driveshaft - 2.00:1 Gear Ratio
40HP 1B000001 & Up Gear Housing, Driveshaft - 2.00:1 Gear Ratio
50HP 0G590000 THRU 0G760299 Jet Components
50HP 0G760300 THRU 0T979999 Jet Components
50HP 9973100 THRU 0P016999 Jet Components
30HP JET 9973100 THRU 0P016999 Jet Components
40HP 9973100 THRU 0P016999 Jet Components
30HP JET 0P017000 THRU 0P153499 Jet Components
30HP JET 0G760300 THRU 0T408999 Jet Components
30HP JET 0G590000 THRU 0G760299 Jet Components
50HP 0P017000 THRU 0P325499 Jet Components
40HP 0G590000 THRU 0G760299 Jet Components
